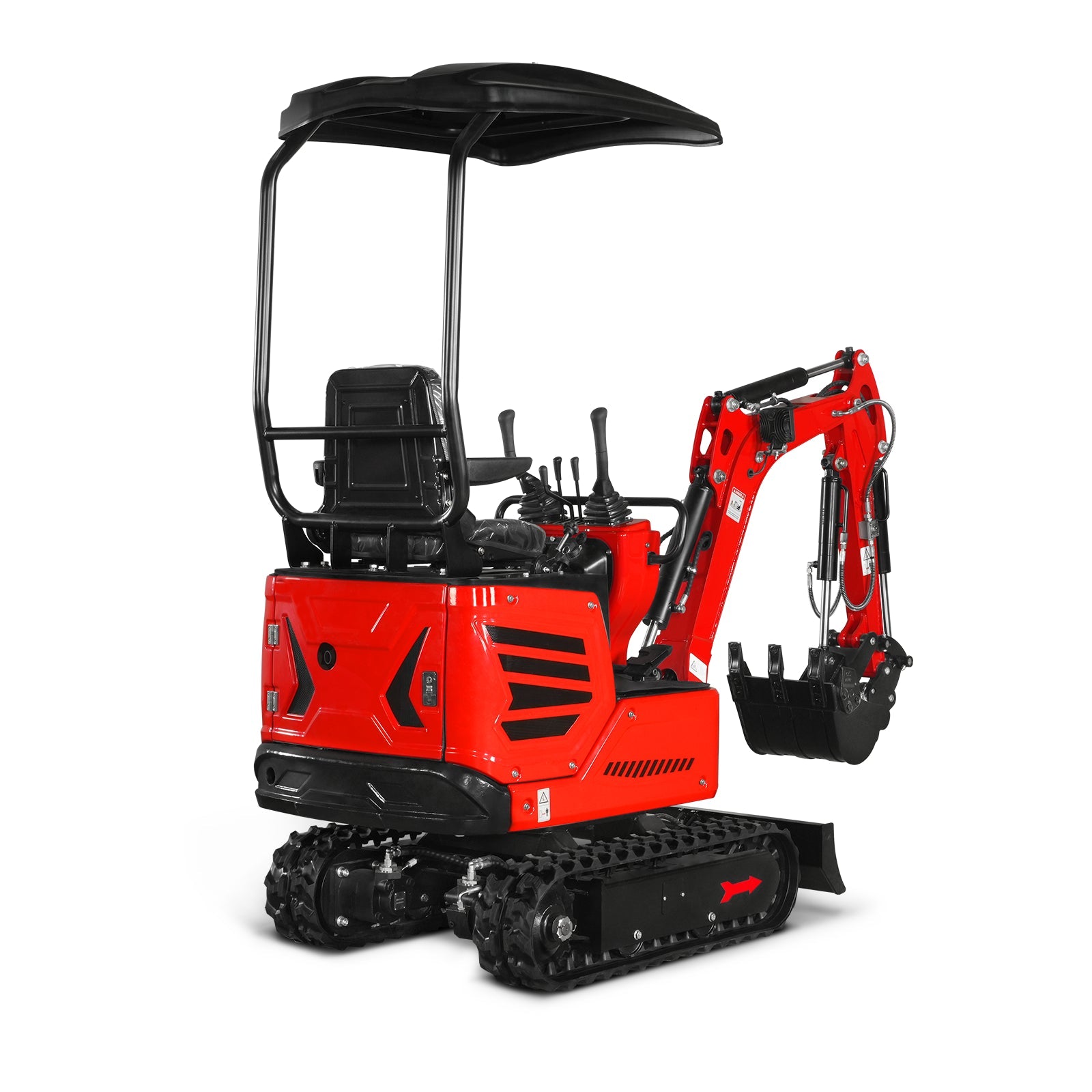

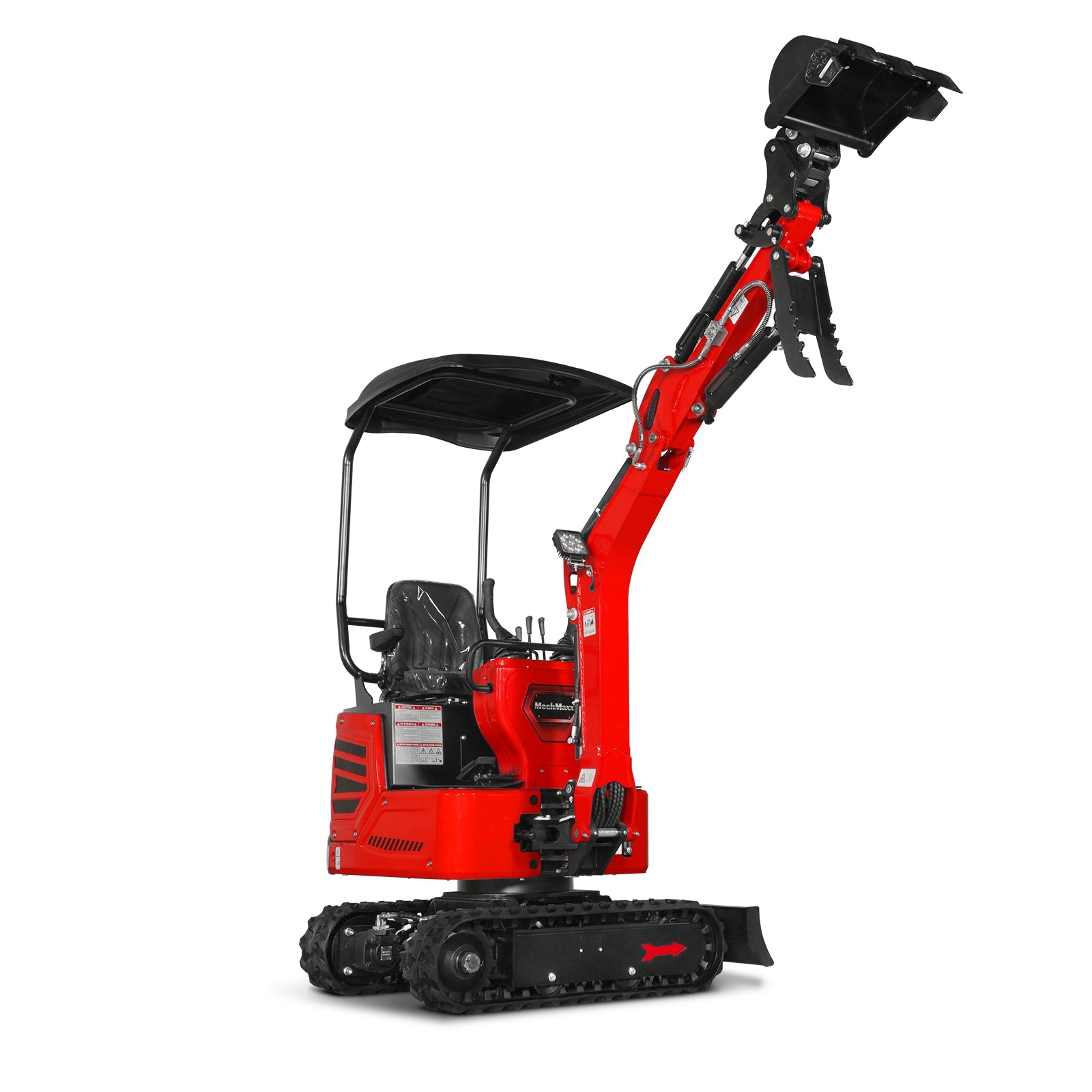

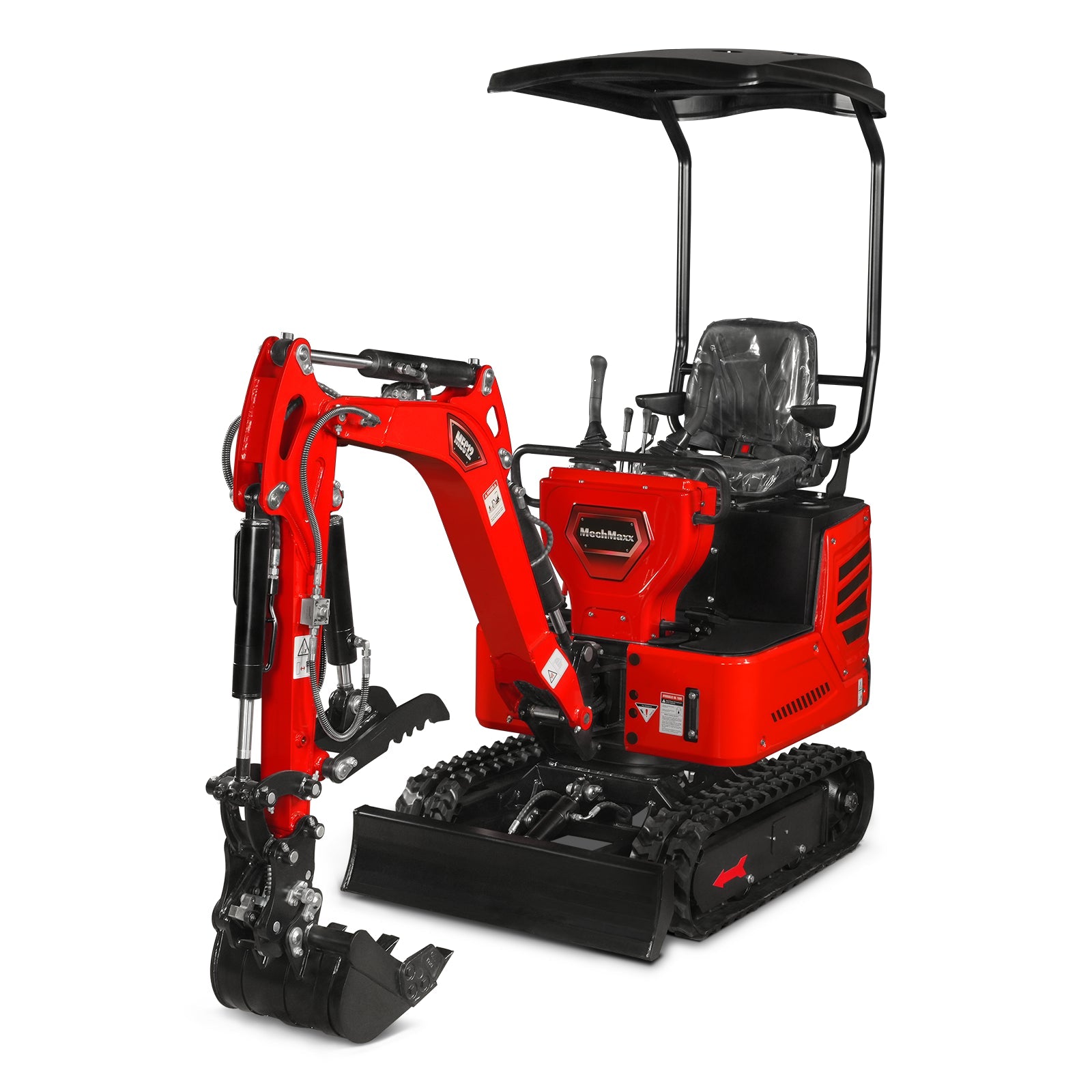

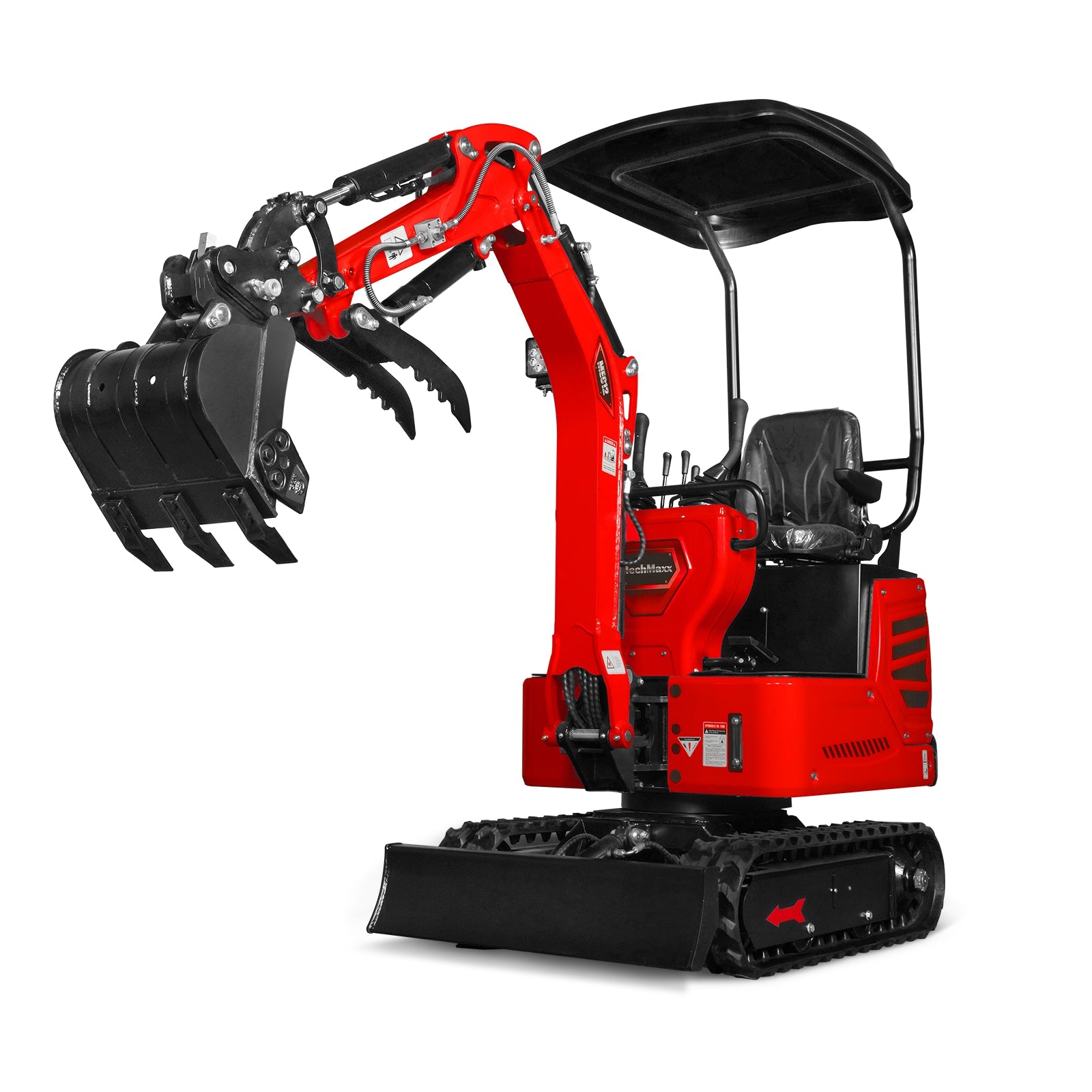

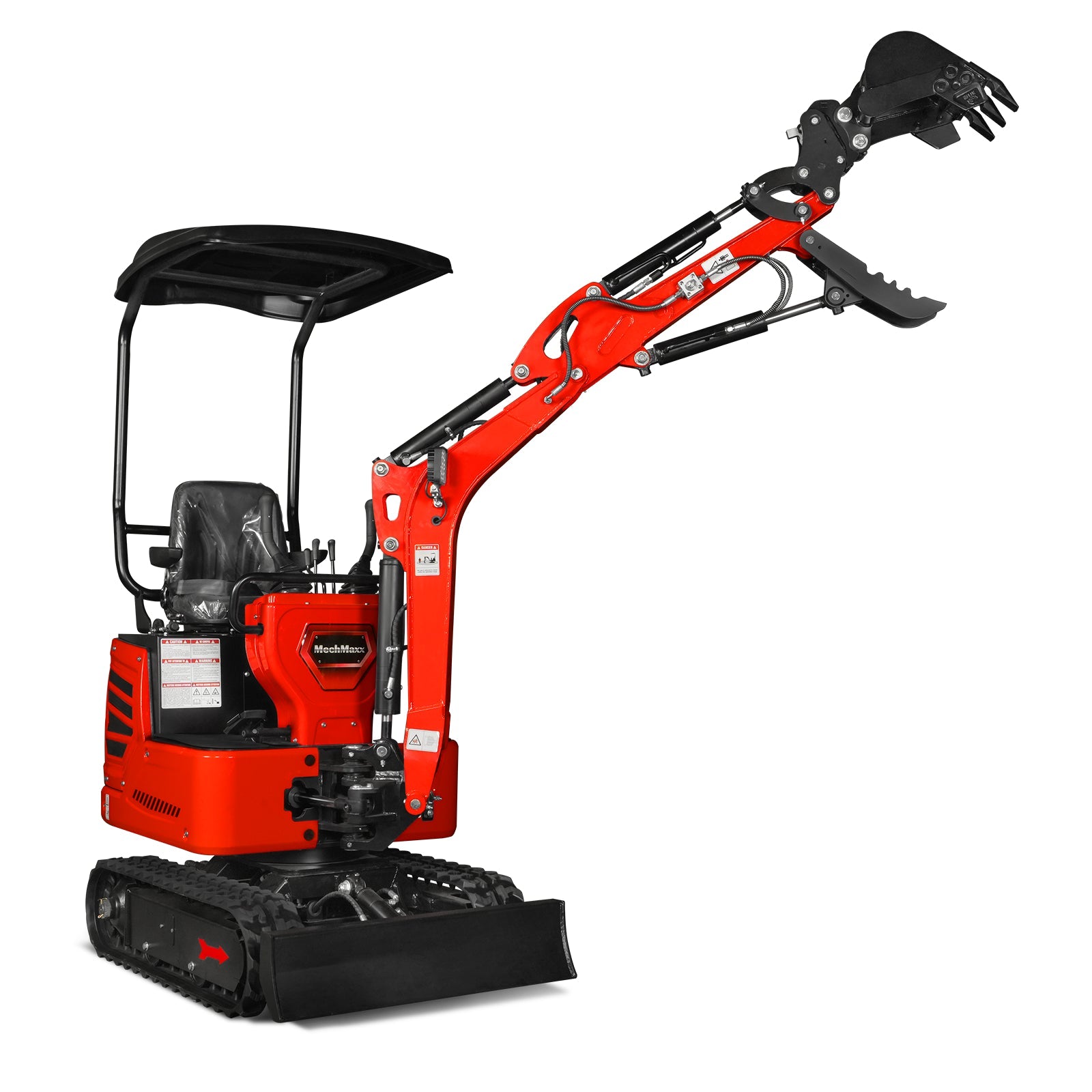

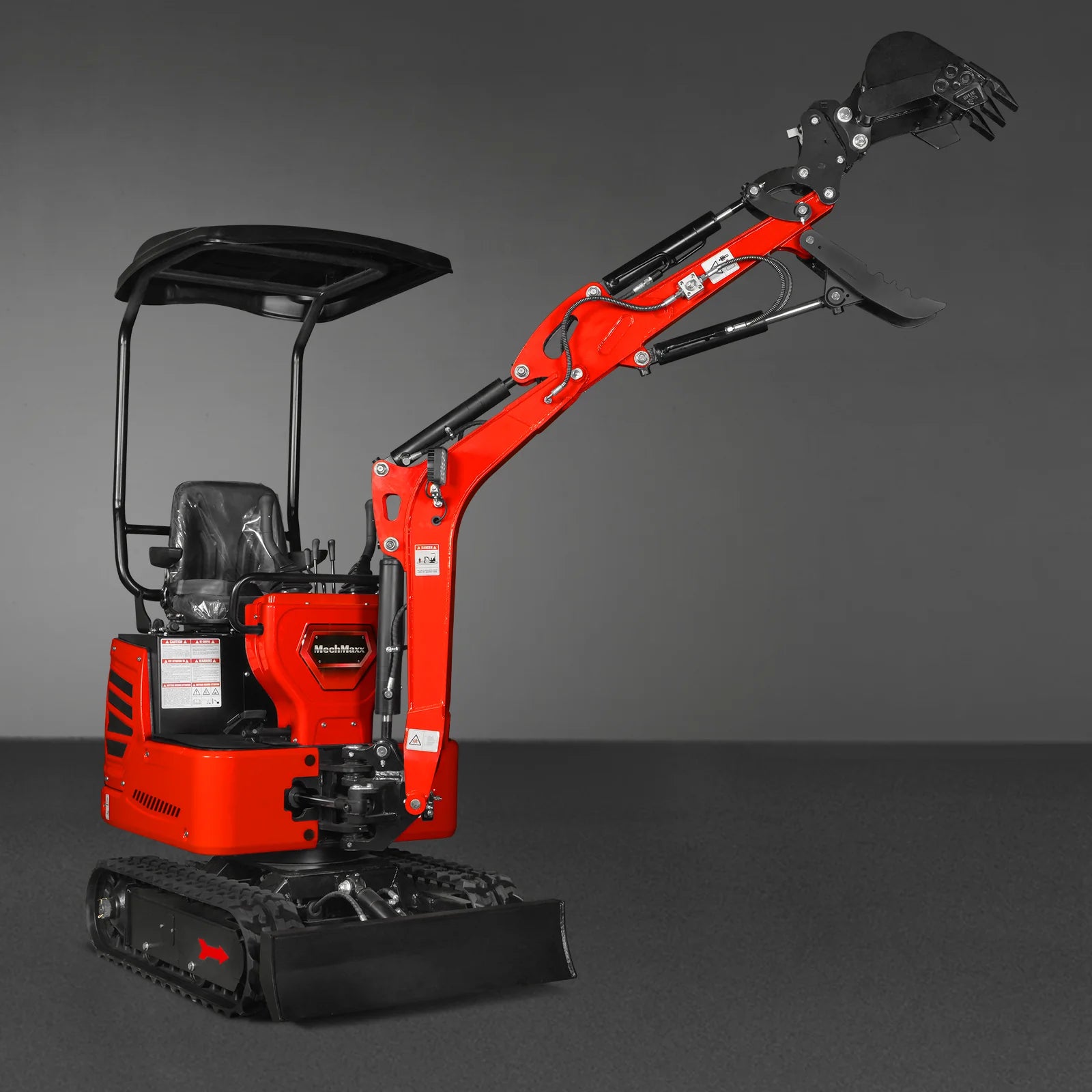

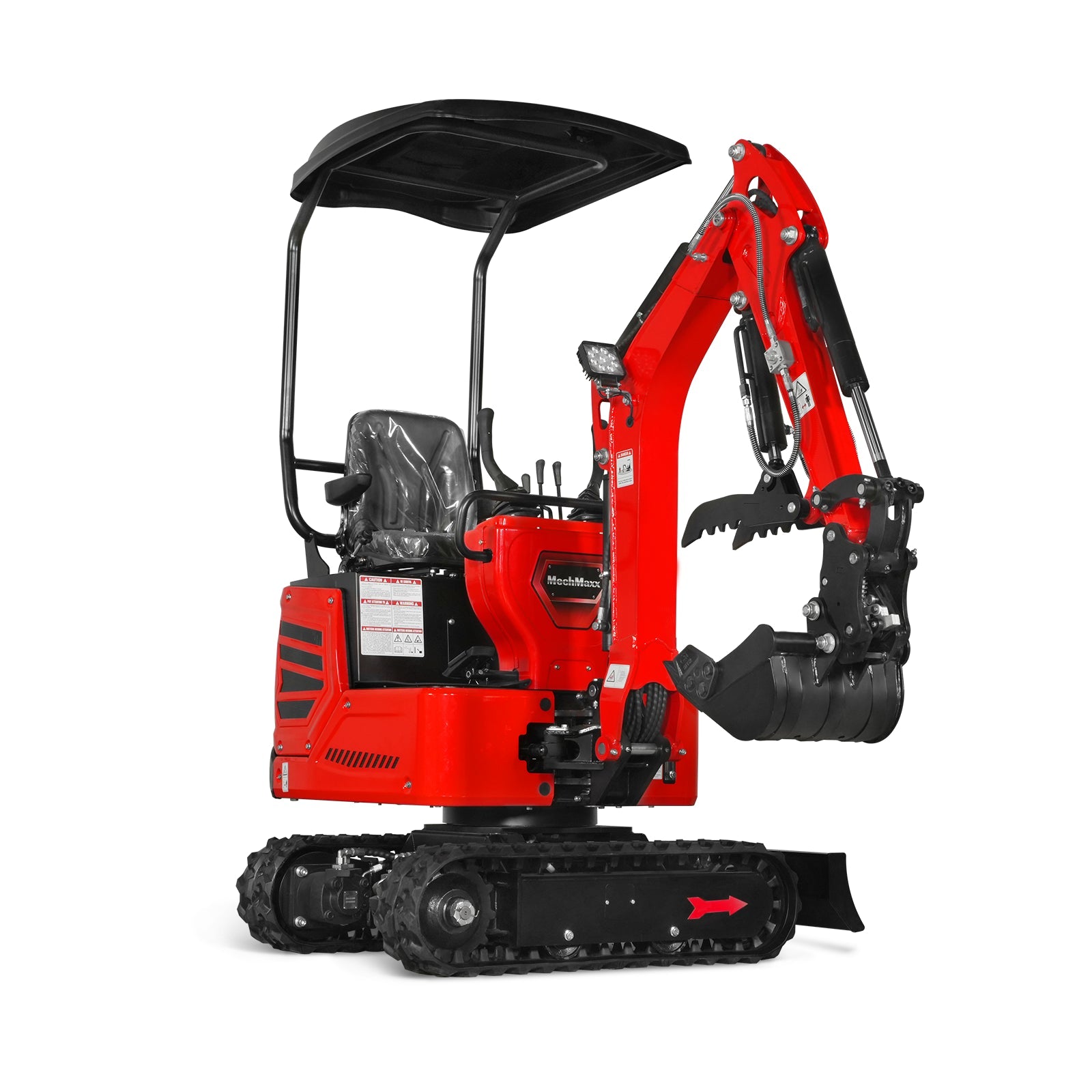

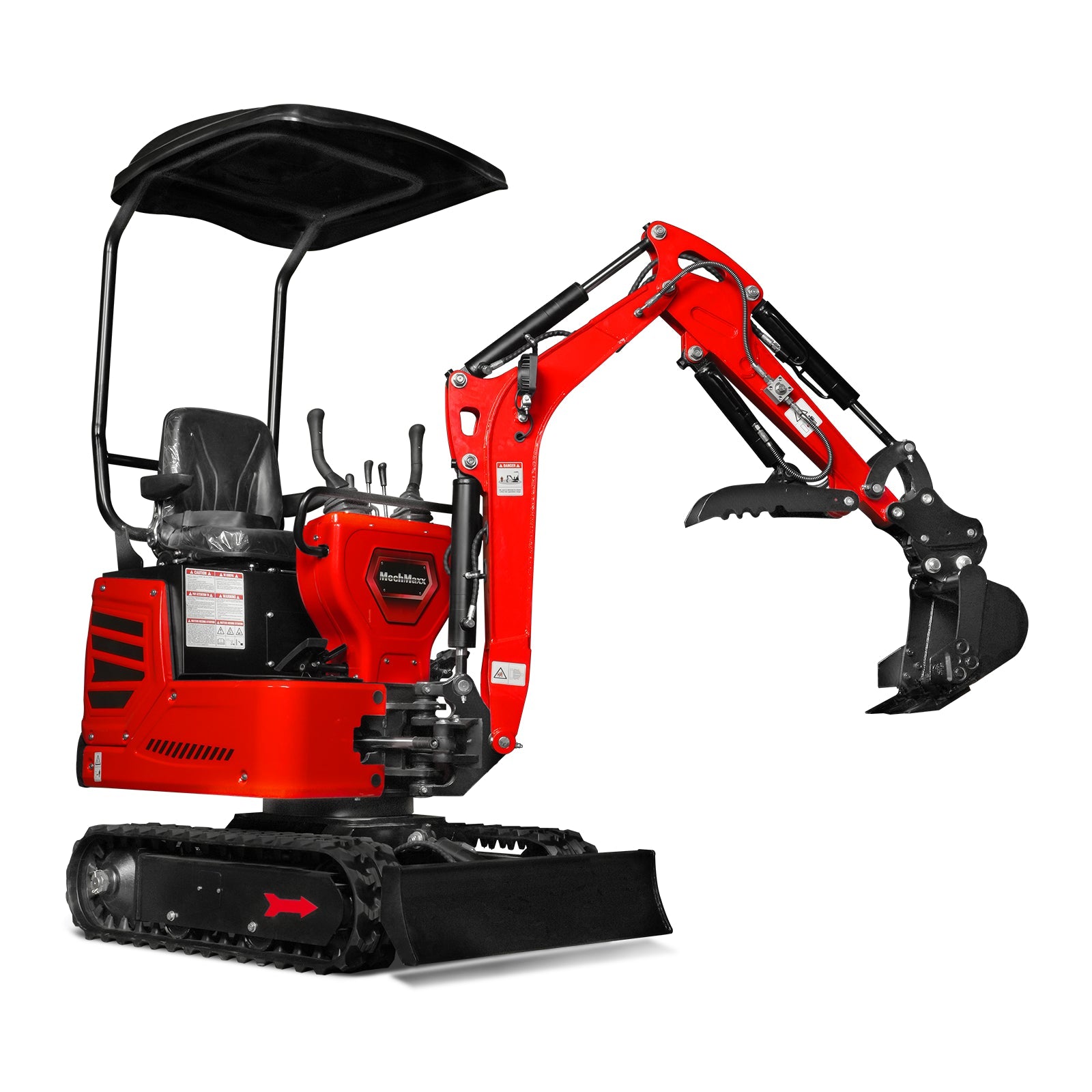

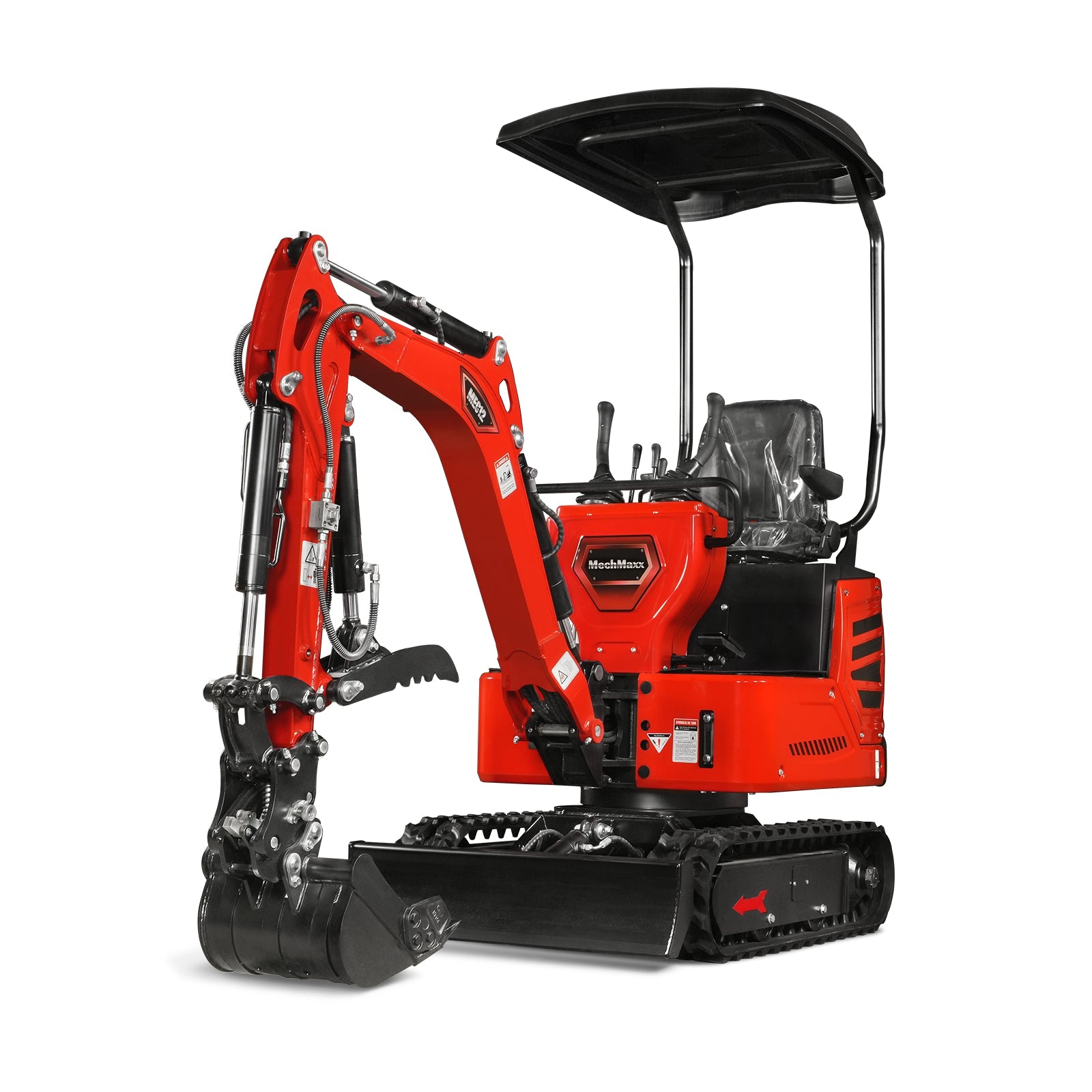

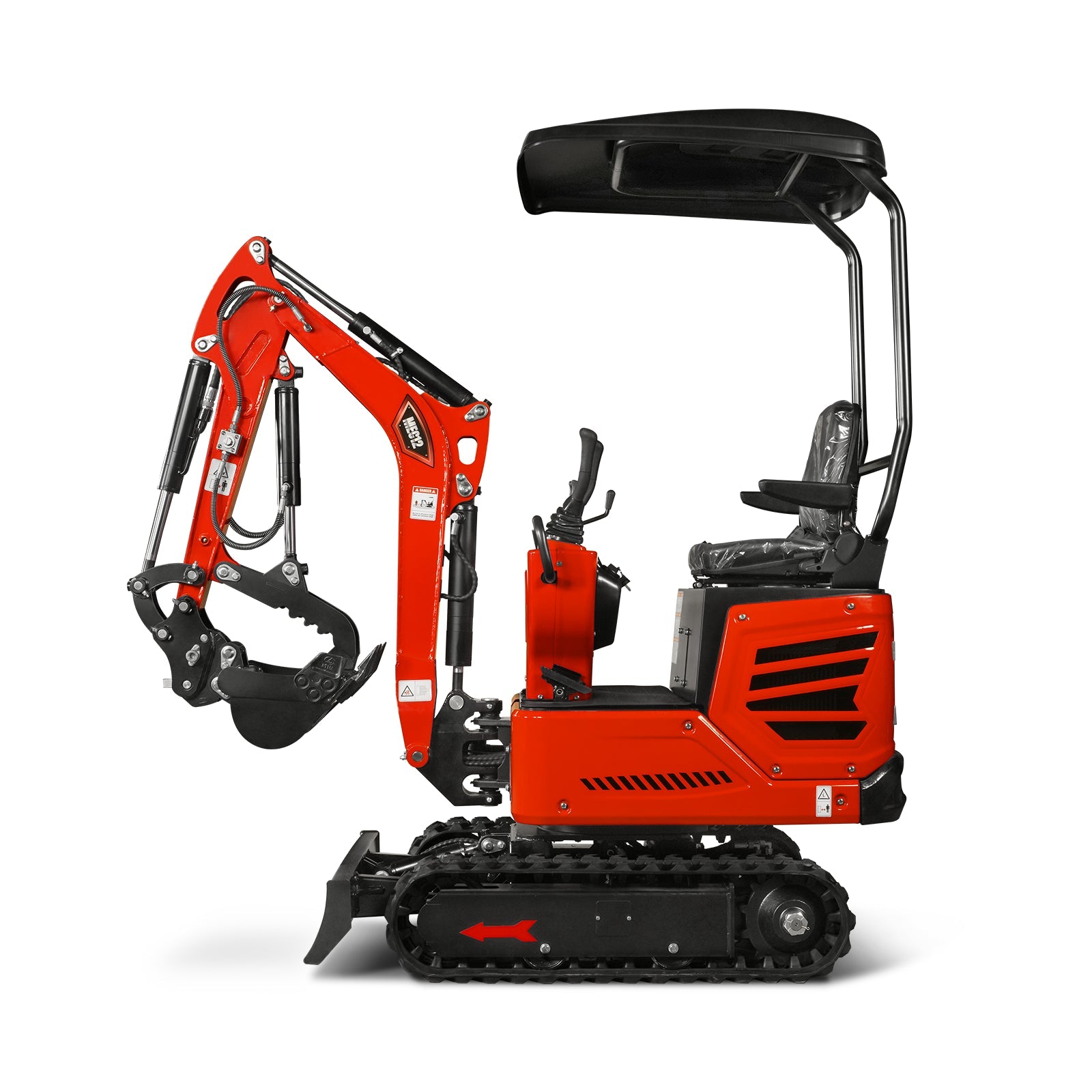

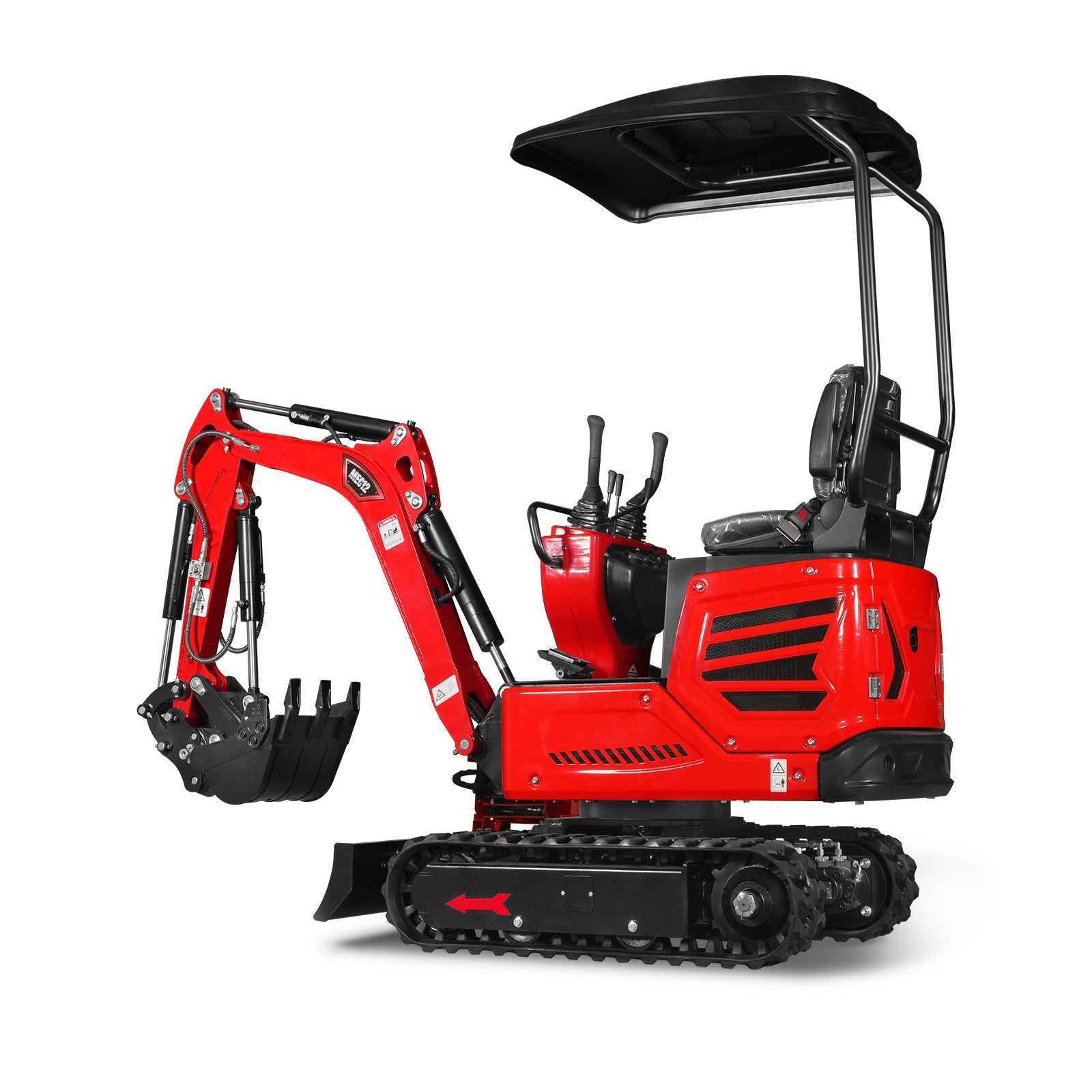

Mini Compact Excavator HONDA GX390 Engine, 65.7" Max. Digging Depth, 2100 LBS Operating Weight, MEC10

$3,899.00

$3,899.00 ~~$9,999.00~~

SAVE 61% Sold out

Fits 15-45HP tractors
1-Year Warranty - Backed by real U.S. support

Product variants

Quantity

Mini Compact Excavator HONDA GX390 Engine, 65.7" Max. Digging Depth, 2100 LBS Operating Weight, MEC10

$3,899.00

$3,899.00 ~~$9,999.00~~

SAVE 61% Sold out

LIMITED TIME DEAL - MASSIVE DISCOUNT LIVE NOW

Absolutely impressed—cuts smoothly and consistently. Engine starts easily every time. Highly recommend

Lucas B.

The included blades cut clean and last longer than expected. Excellent value.

Randy

Mounted easily on my tractor. Grinds stumps fast and deep—highly efficient.

Dennis P.

1 2 3

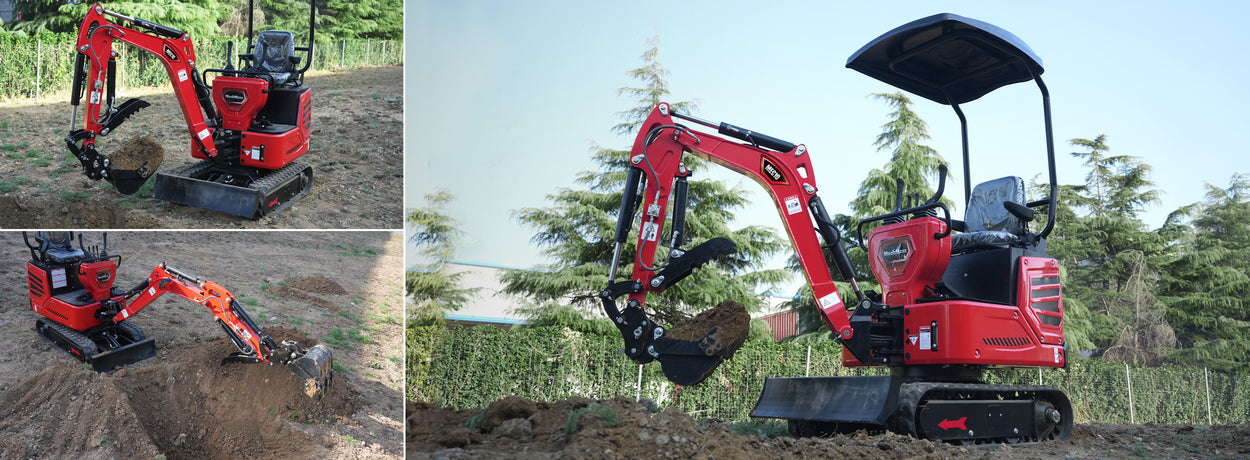

MEC10 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

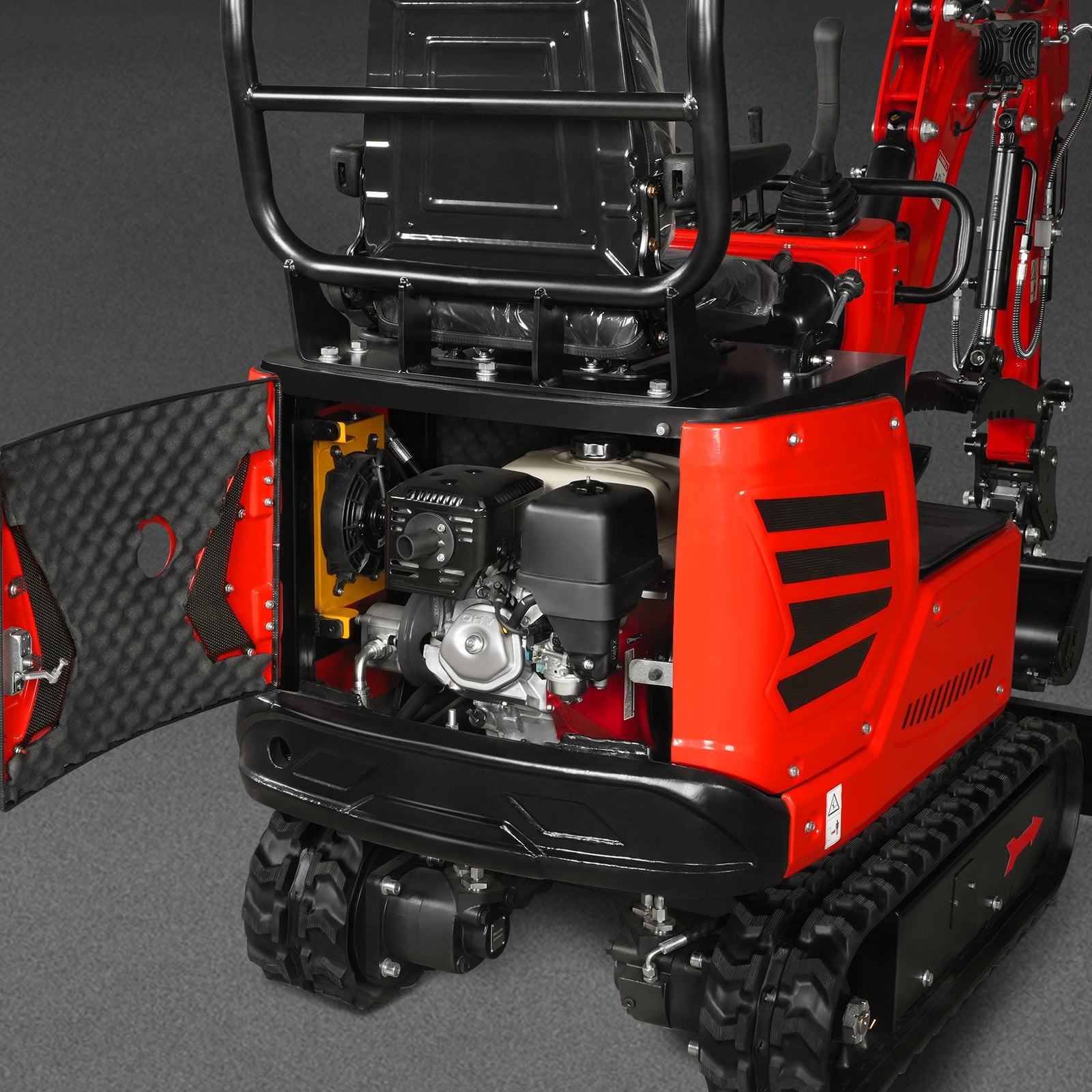

Powered by Honda GX390 389cc 11.7HP air-cooled engine, high compression ratio for better fuel efficiency.
Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.

Note！

The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.

Product Features :

With the GX390, you're looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda's GX Series is power you can trust. Honda's GX series engines are legendary for superior reliability and performance. Low noise levels, low vibration, and low emissions - without sacrificing power output or performance.

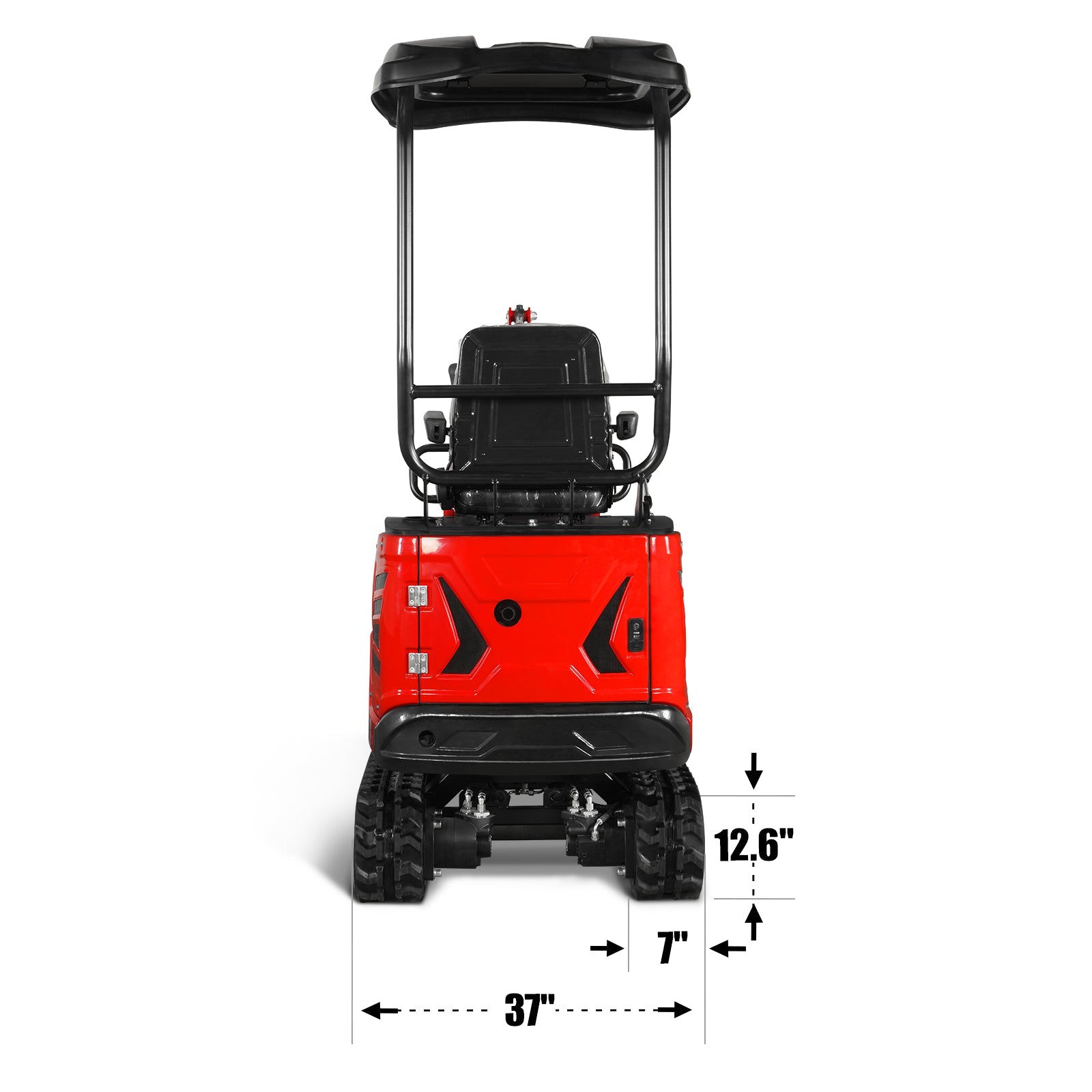

Chassis Width

At 37 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

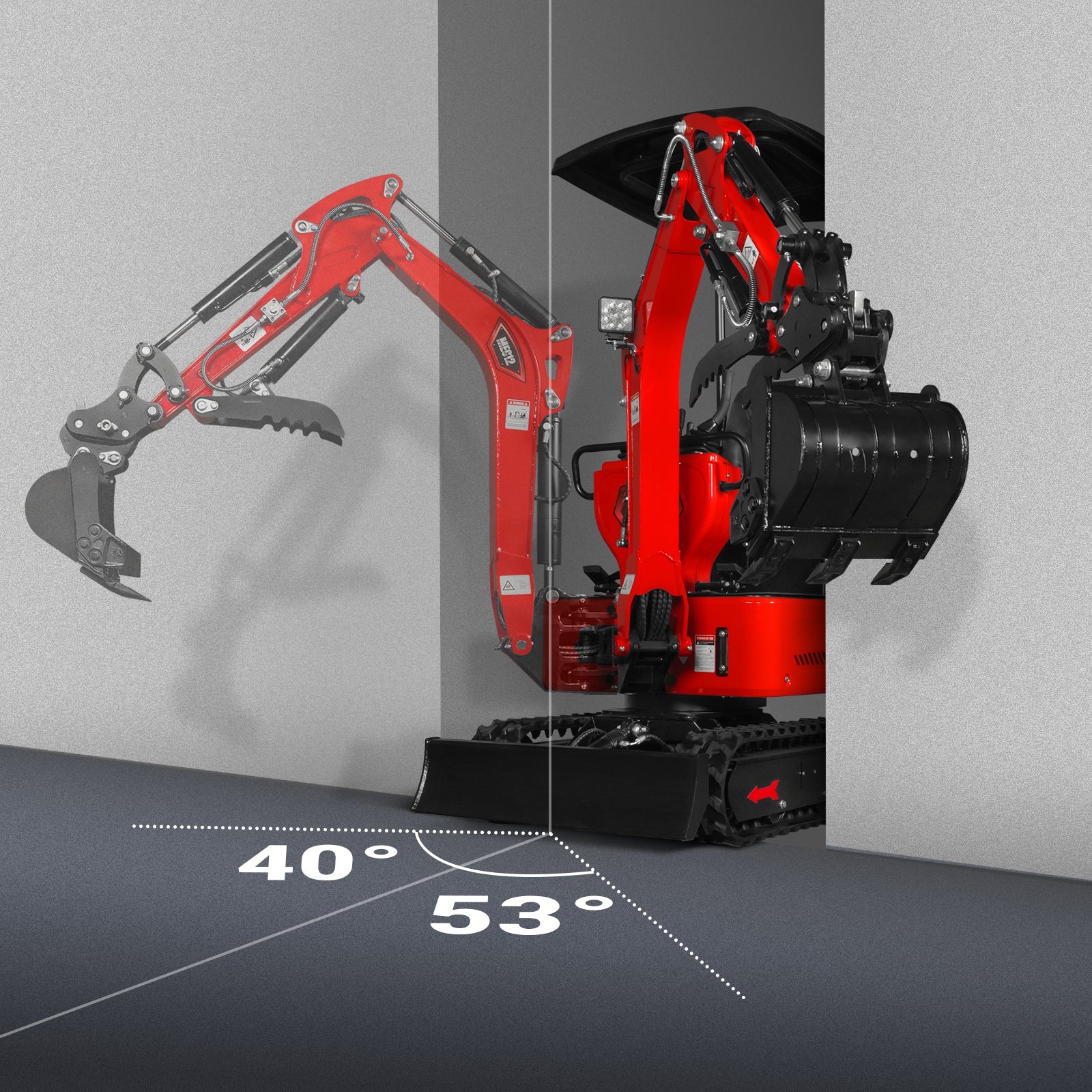

Swing Arc

The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

Digging Depth

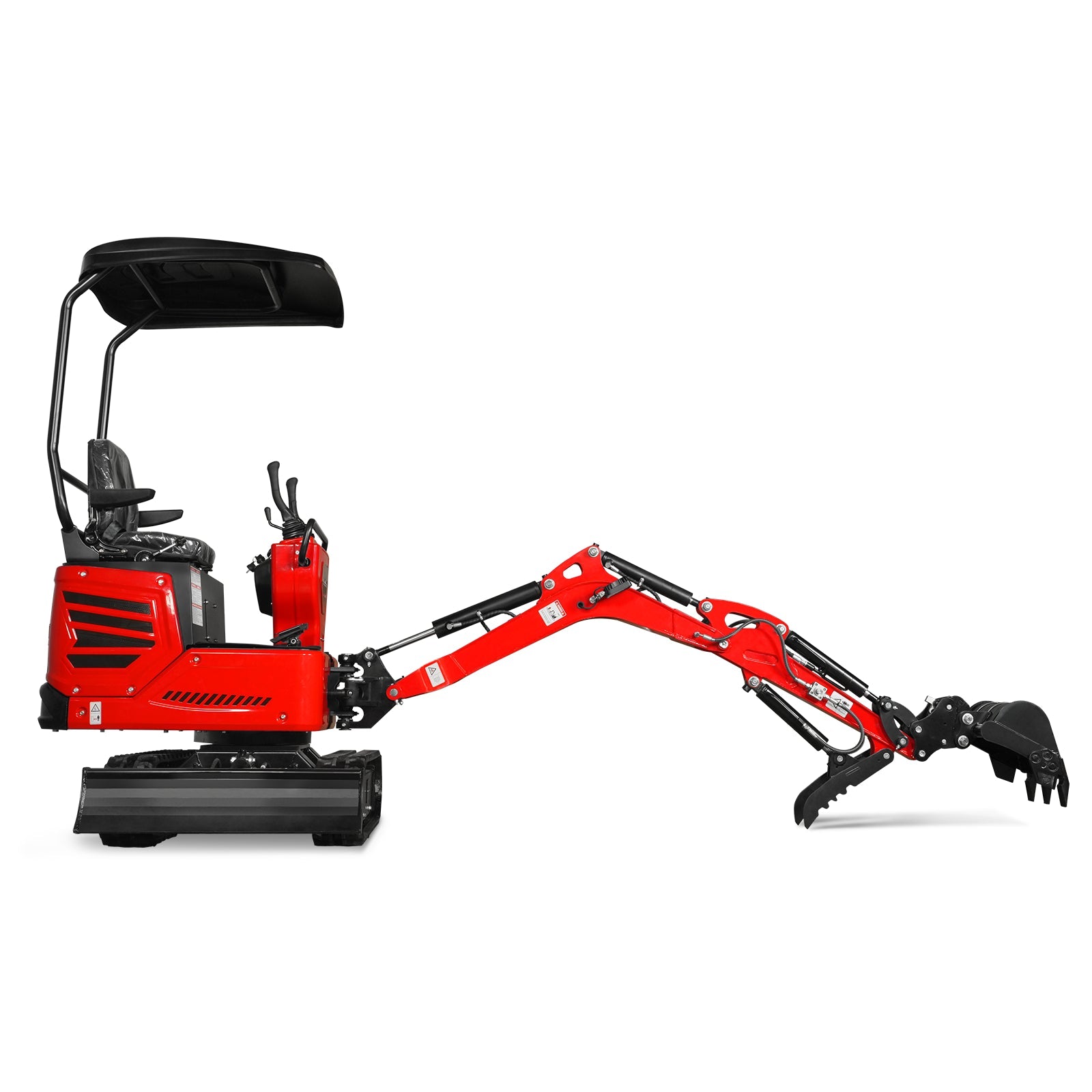

It features an all-around 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

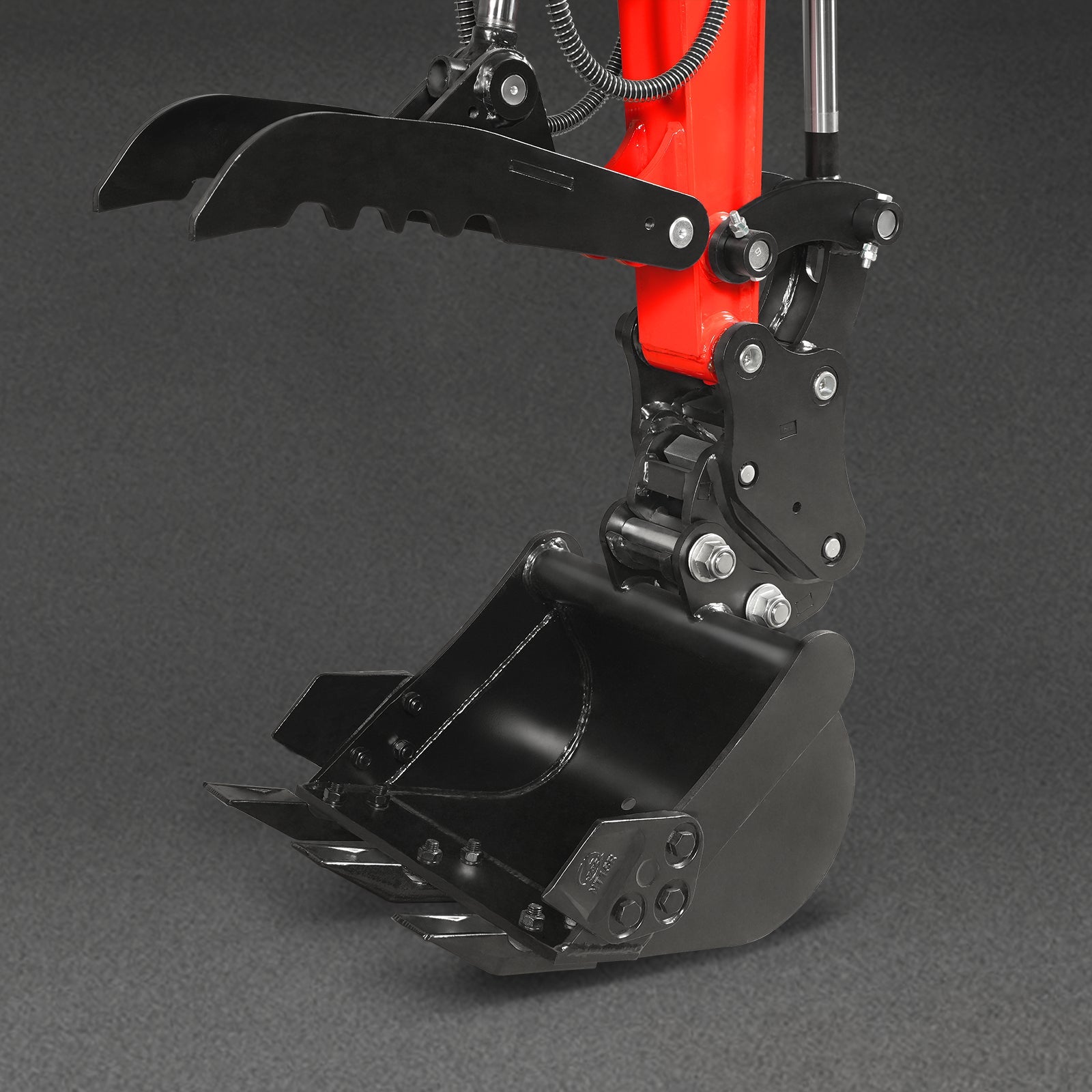

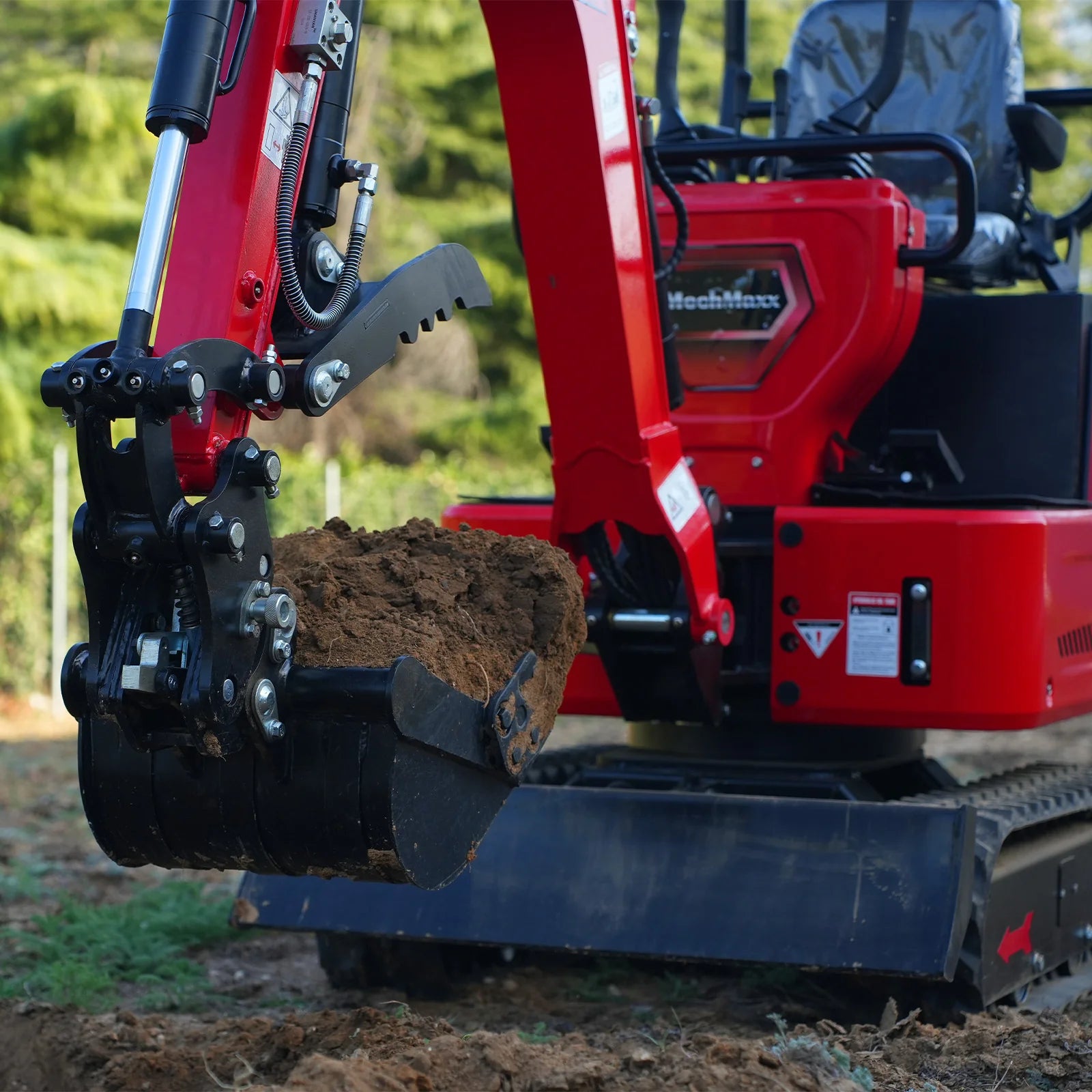

Hydraulic Thumb

The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

Semi-automatic Quick Hitch

The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

Hydraulic Oil Radiator

Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.

Product Warranty :

Product Warranty

The Mini Compact Excavator (SKU:150530) stands up to extreme testing and come with a one-year warranty for machine,a one-year warranty for engine.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Specifications:

Standard Bucket Capacity	0.7 cu-ft	Auxiliary Std Flow	5.7 gal/min
Standard Bucket Width	15 in	Max. Tractive Force	3035 lbf
Max. Travel Speed	1.86 mile/h	Arm Digging Force	1191 lbf
Swing Speed	11 RPM	Bucket Digging Force	1619 lbf
Max. Gradeability	30°	Rated Lift Capacity	728 lb
Track Ground Pressure	35 kpa	Lift Radius	80 in

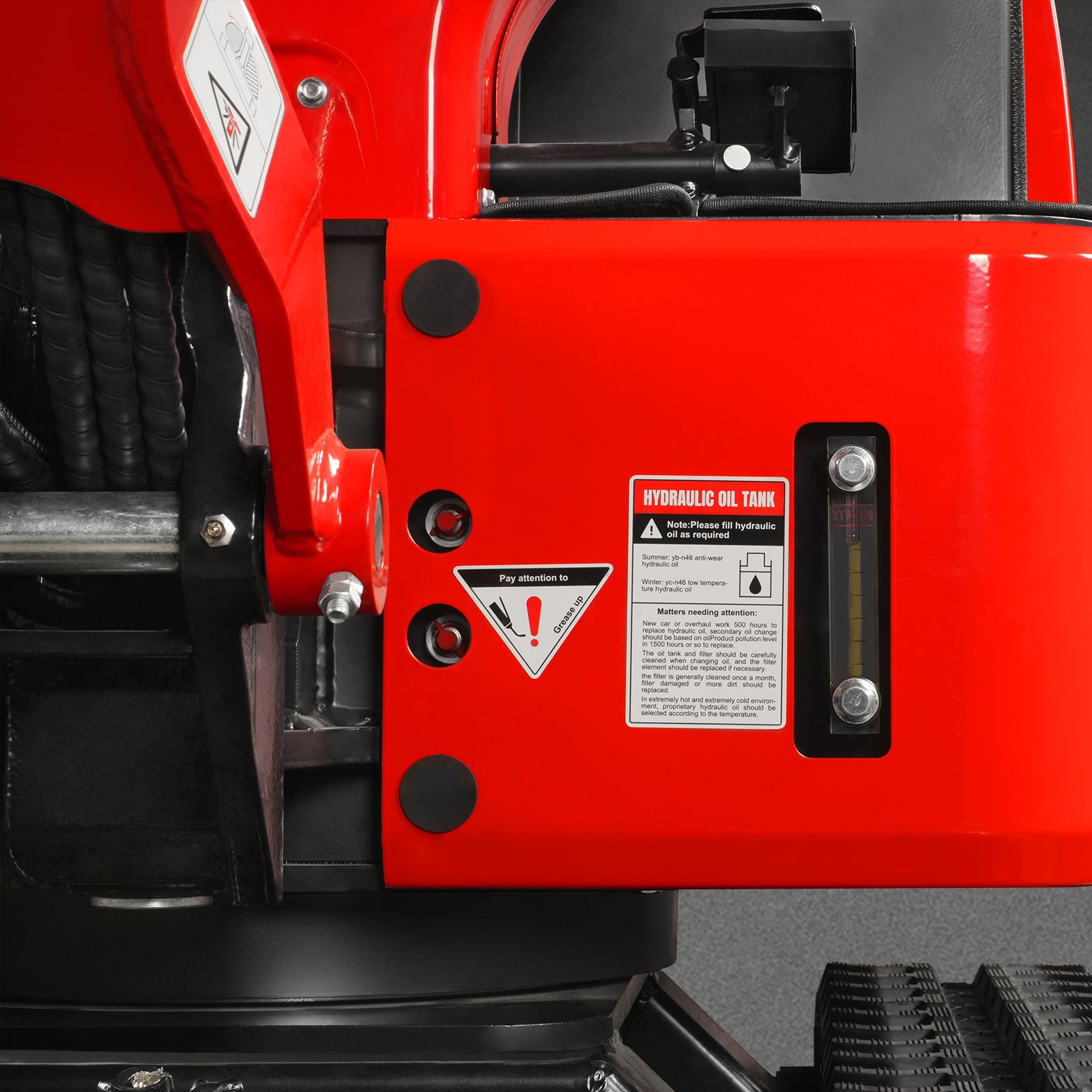

Hydraulic Oil Tank Capacity	3.96 gal	Operating Weight	2100 lb

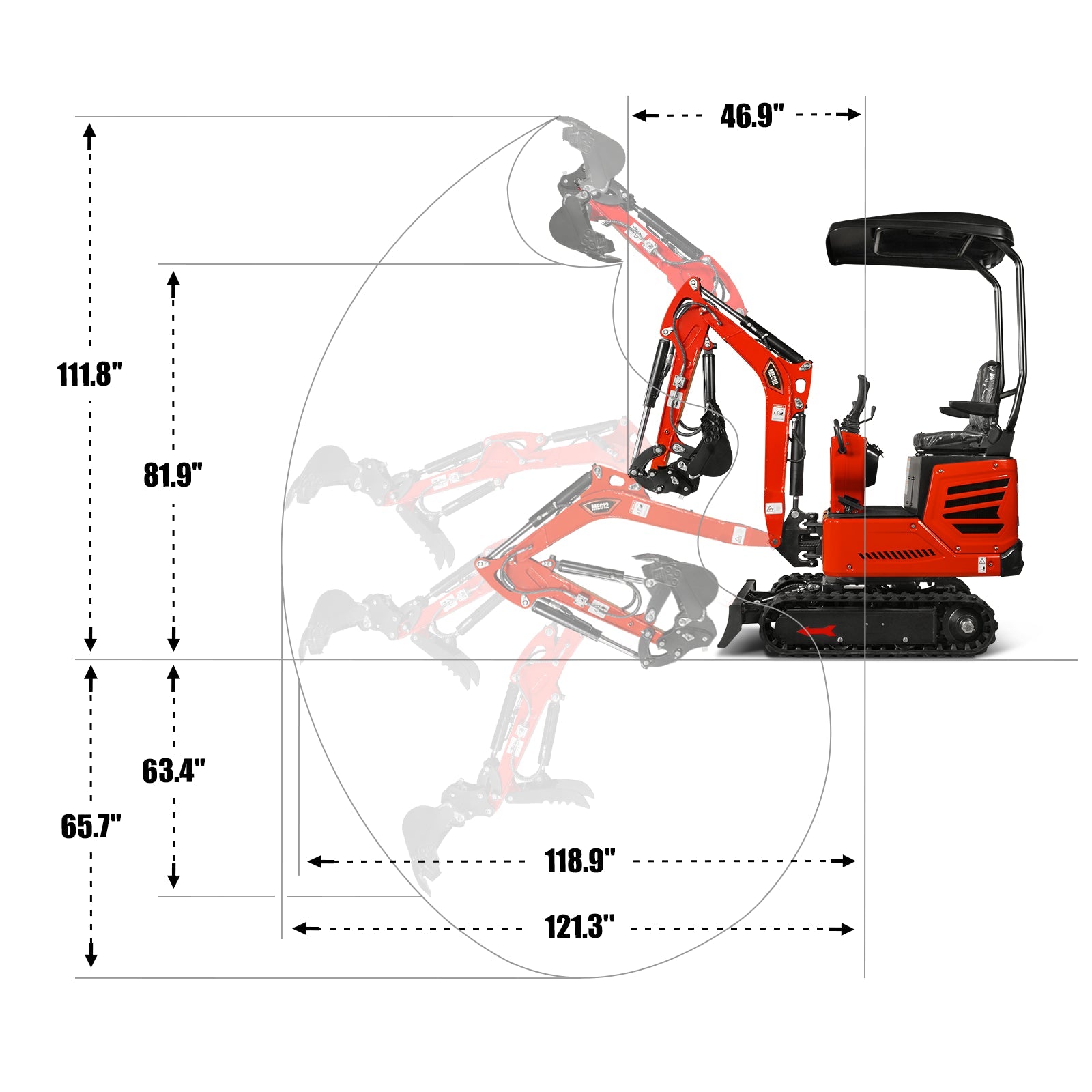

Operating Range
Max.Digging Radius On Ground	119 in	Max. Vertical Digging Depth	63.3 in
Max. Digging Depth	65.7 in	Min. Turning Radius	46.8 in
Overall Operating Height (Fully Raised)	111.8 in	Max. Lifting Height Dozer Blade	5.9 in
Max. Digging Radius	121 in	Max. Depth Dozer Blade	7.4 in
Max. Unloading Height	81.8 in

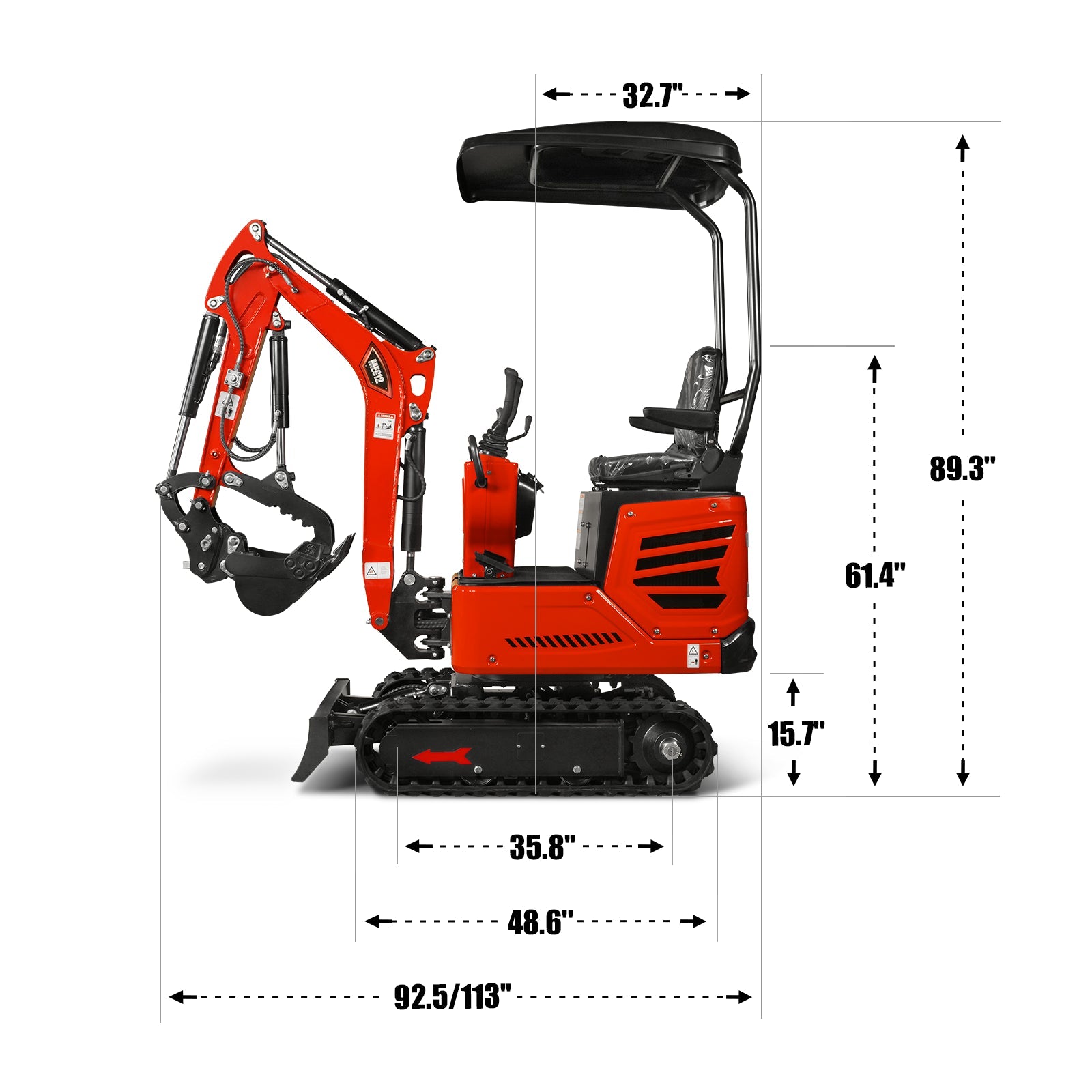

Main Dimensions
Wheel Track	35.8 in	Track Height	12.6 in
Track Length	48.6 in	Transportation Length	92.5/113 in
Upper Chassis Ground Clearance	15.7 in	Height Of Seat To Ground	61.4 in
Counterweight Turning Radius	32.6 in	Overall Height	89.3 in
Chassis Width	37 in	Boom Swing-Right	40°
Track Width	7 in	Boom Swing-Left	53°
Engine
Model	Honda GX390	Max. Net Torque	26.5 N.m/2500 RPM
Displacement	389 cc; 11.7 HP	Fuel Tank Capacity	1.6 gal
Engine Type	4-stroke, overhead valve, single cylinder	Engine Oil Capacity	0.3 gal
Start Type	Electric start	Engine Oil Type	10W-30
Rated Power	8.7 KW/3600 RPM	Warranty	1 Year
Package
Package Method	Plywood Case	Weight (N.W./G.W.)	2100/2376 lb
Dimensions	91x40x98 in

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
