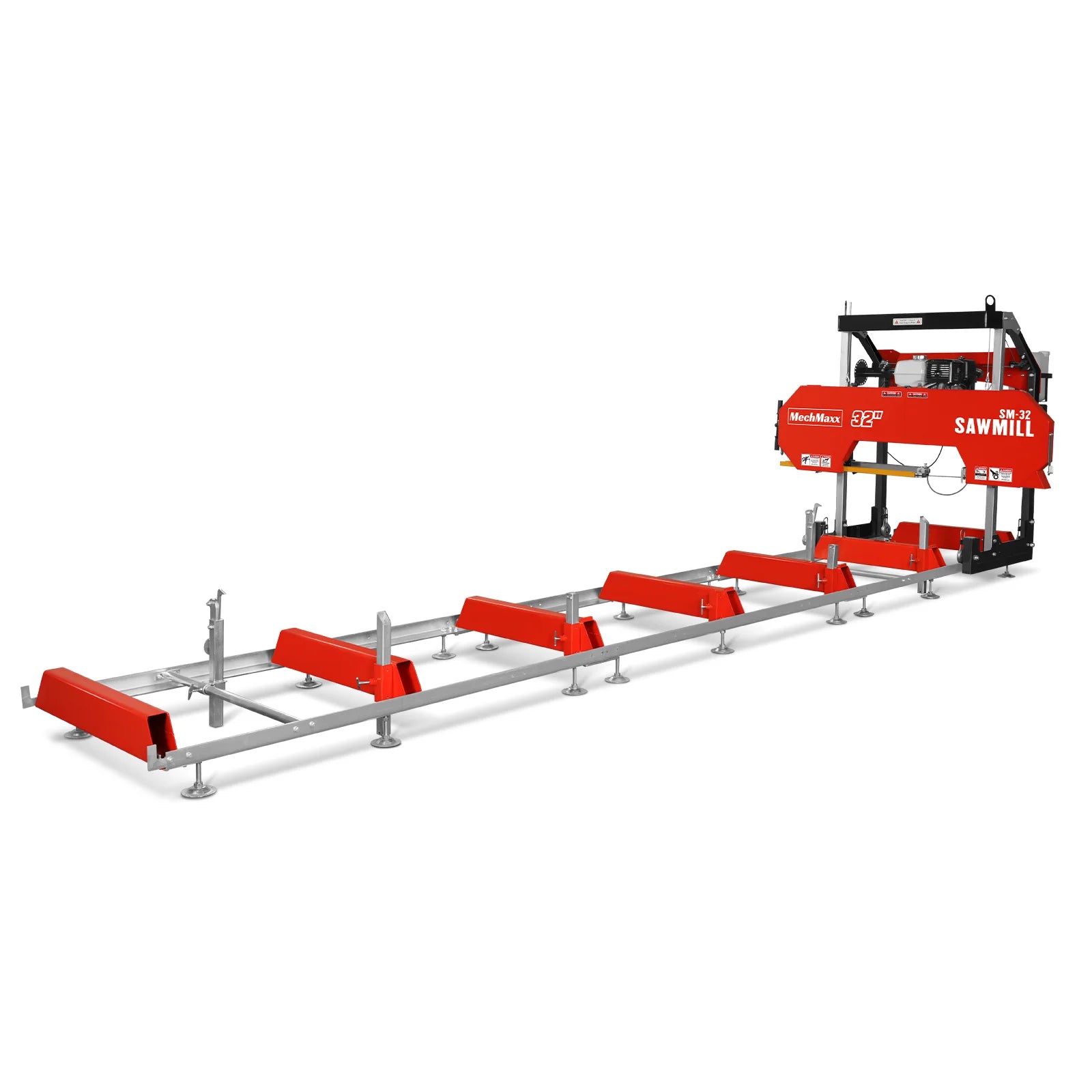

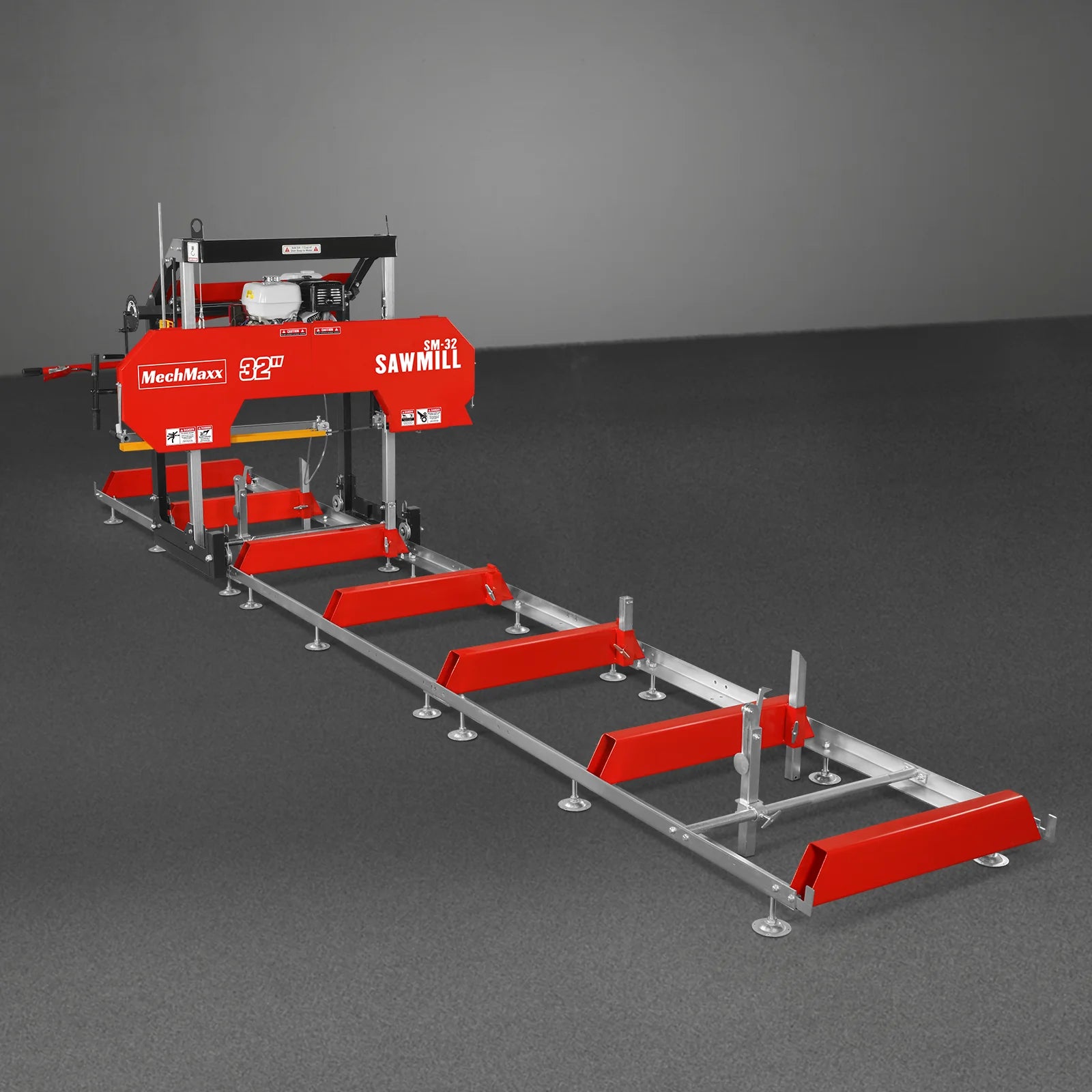

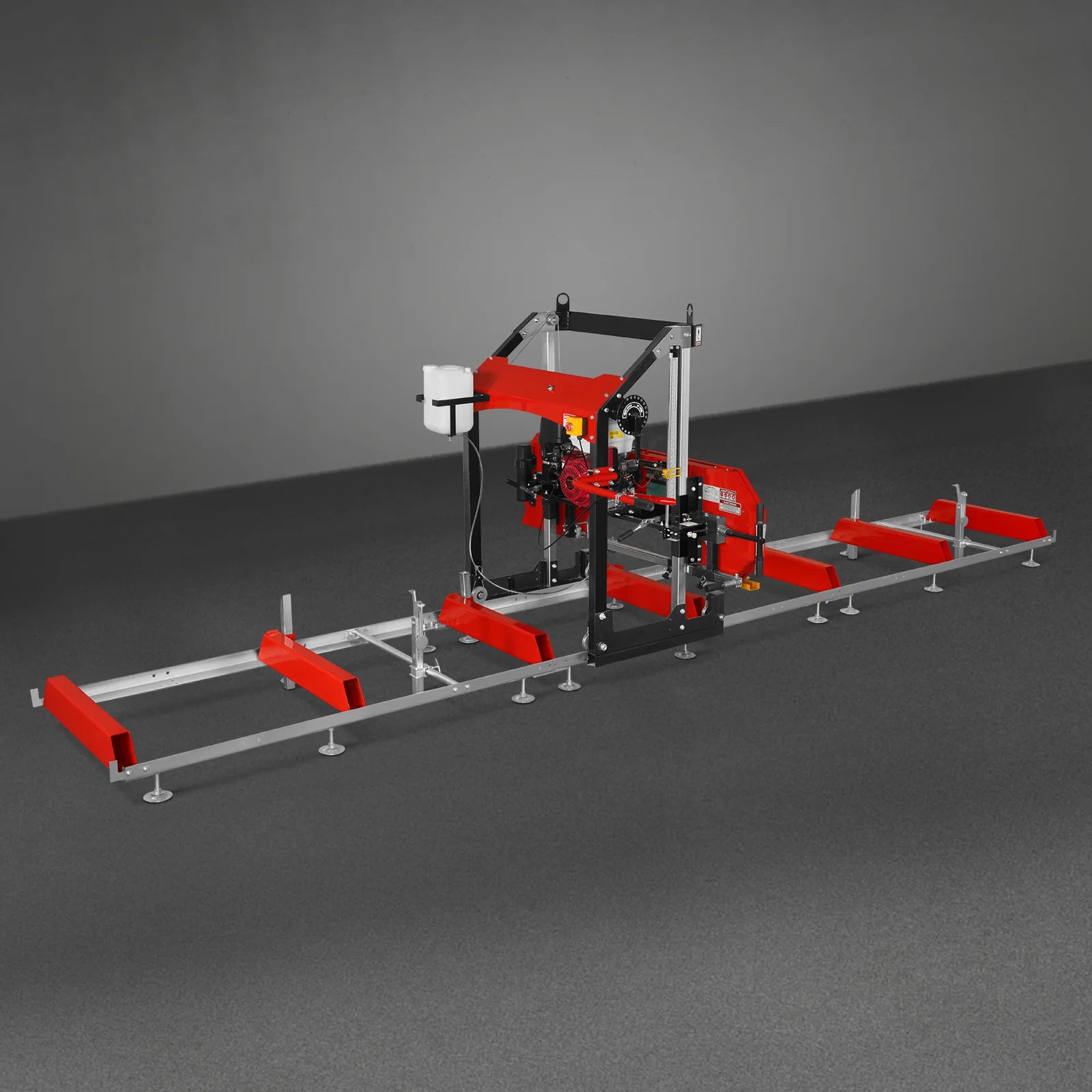

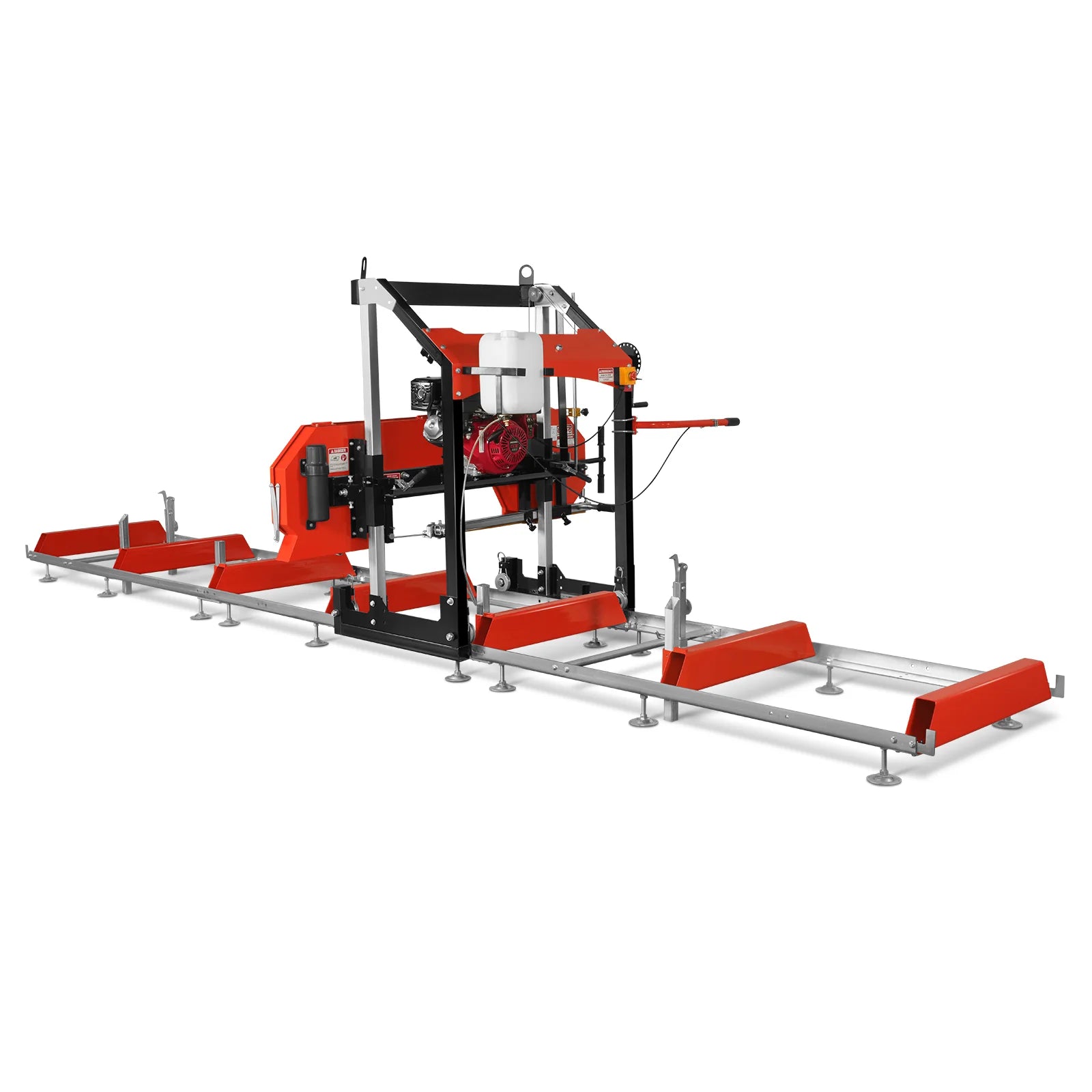

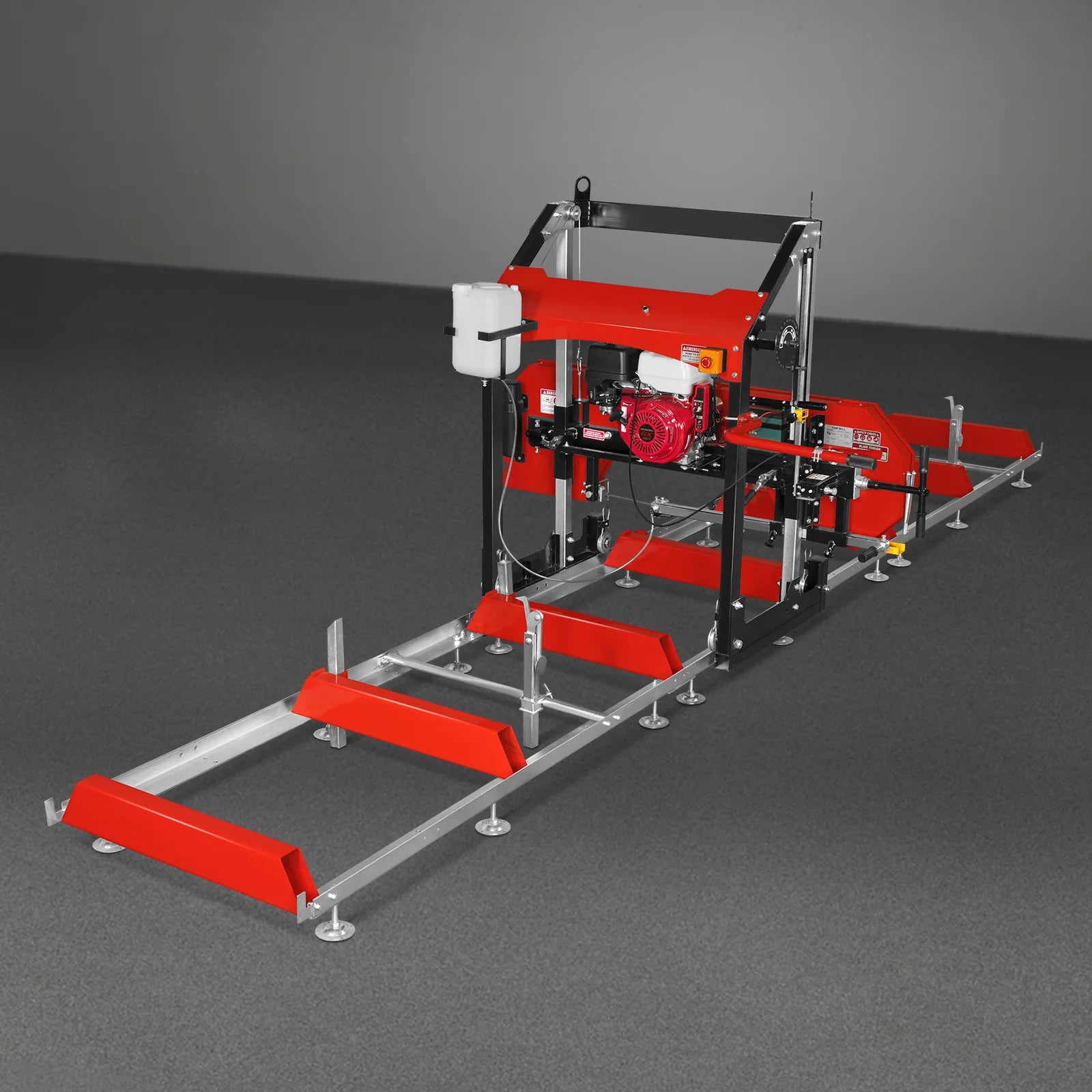

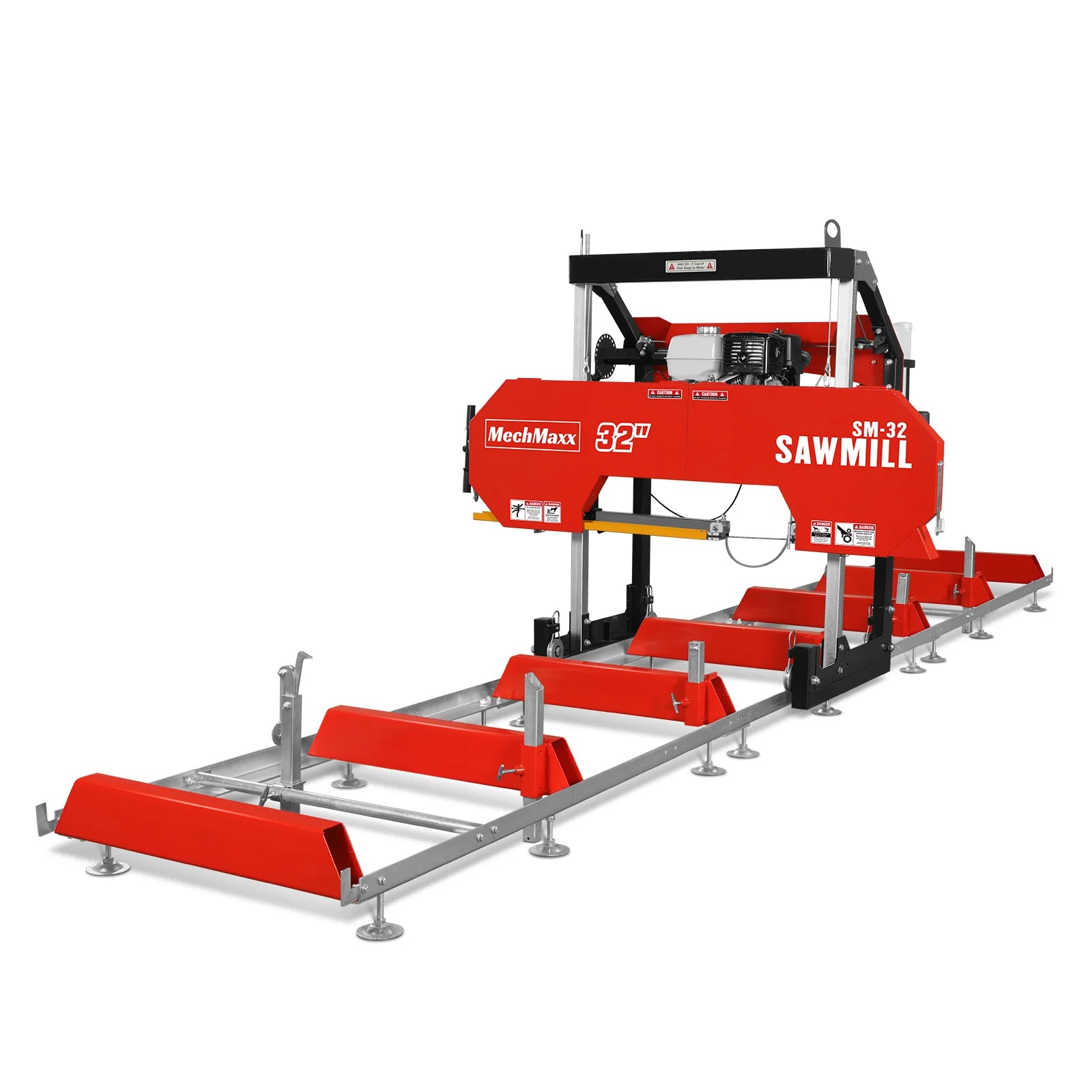

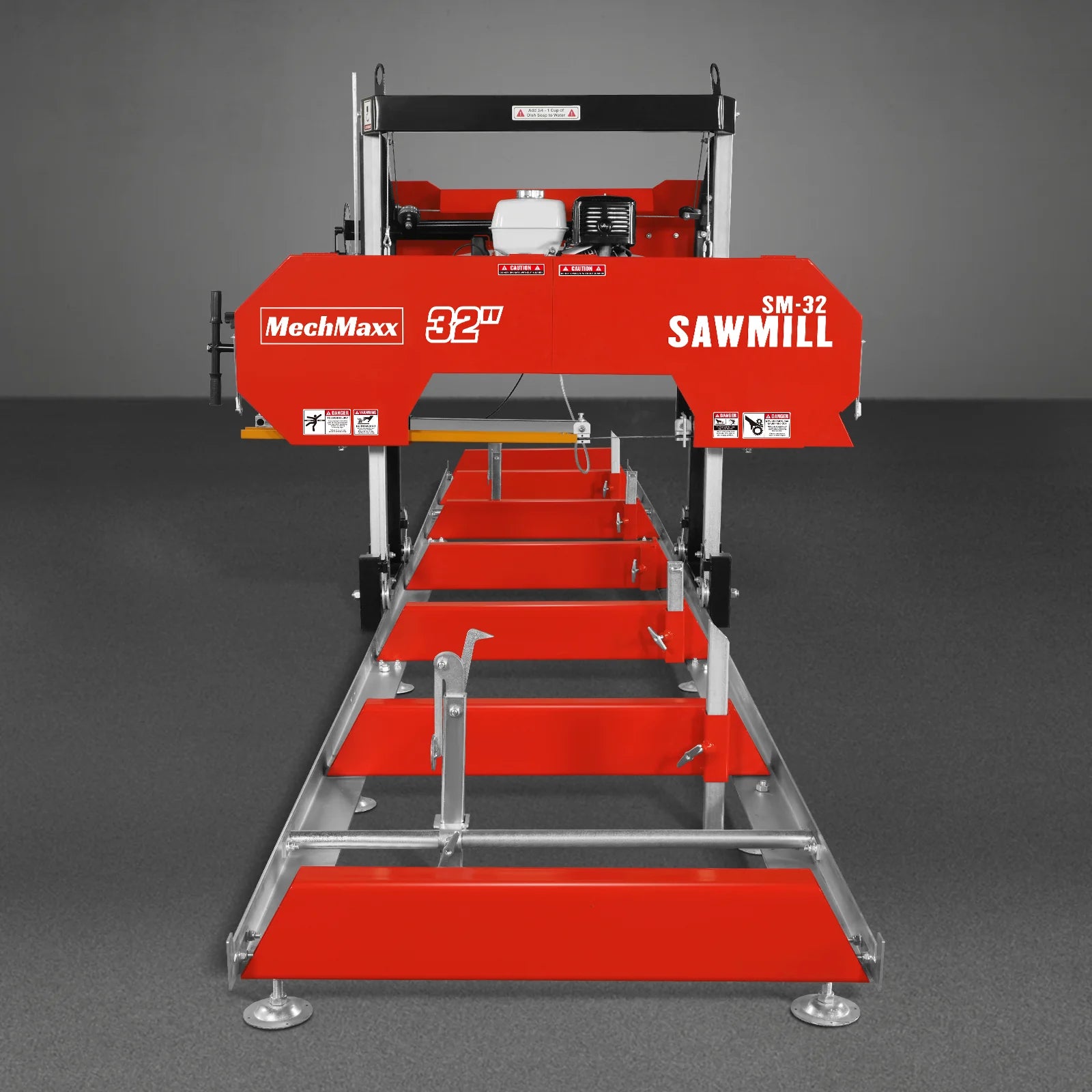

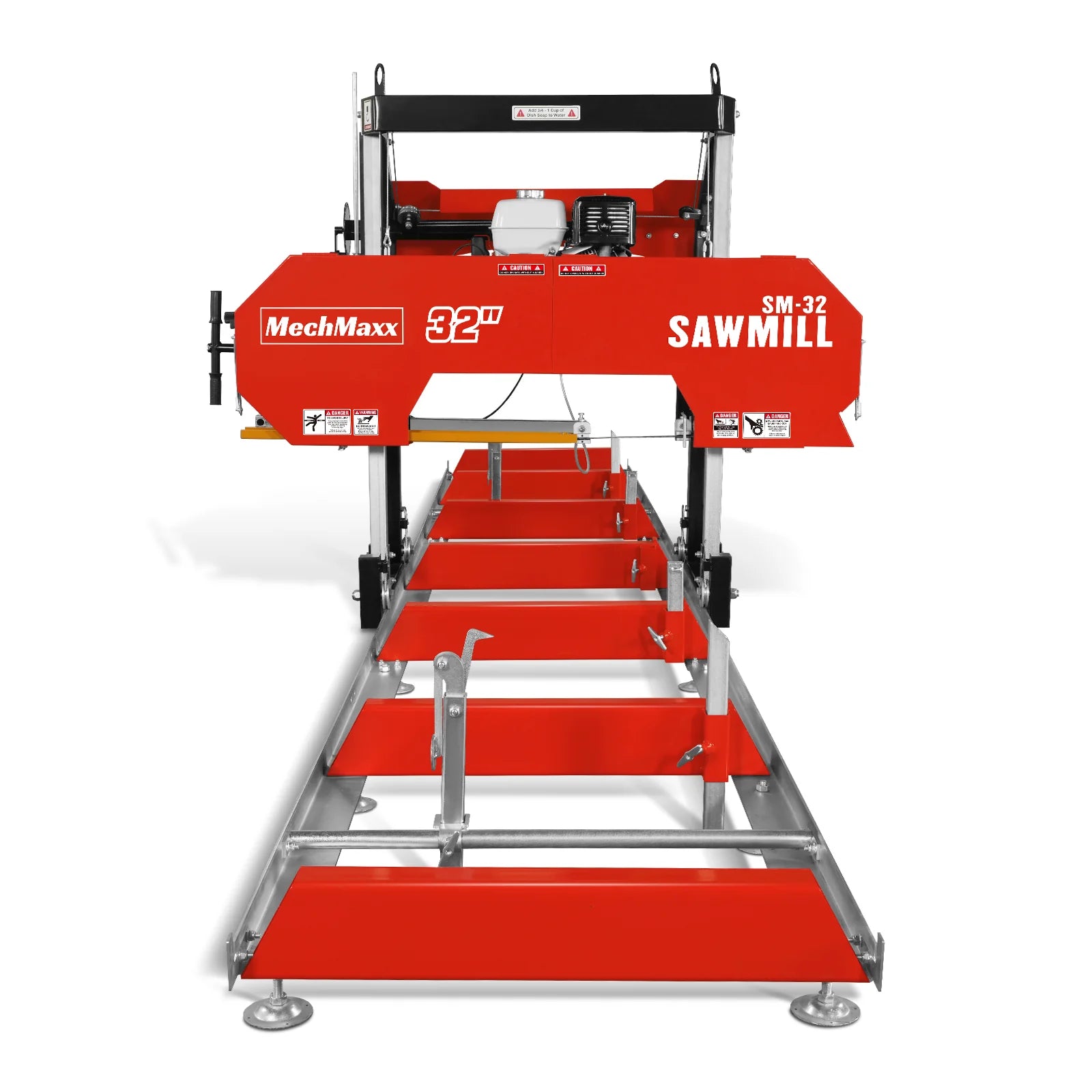

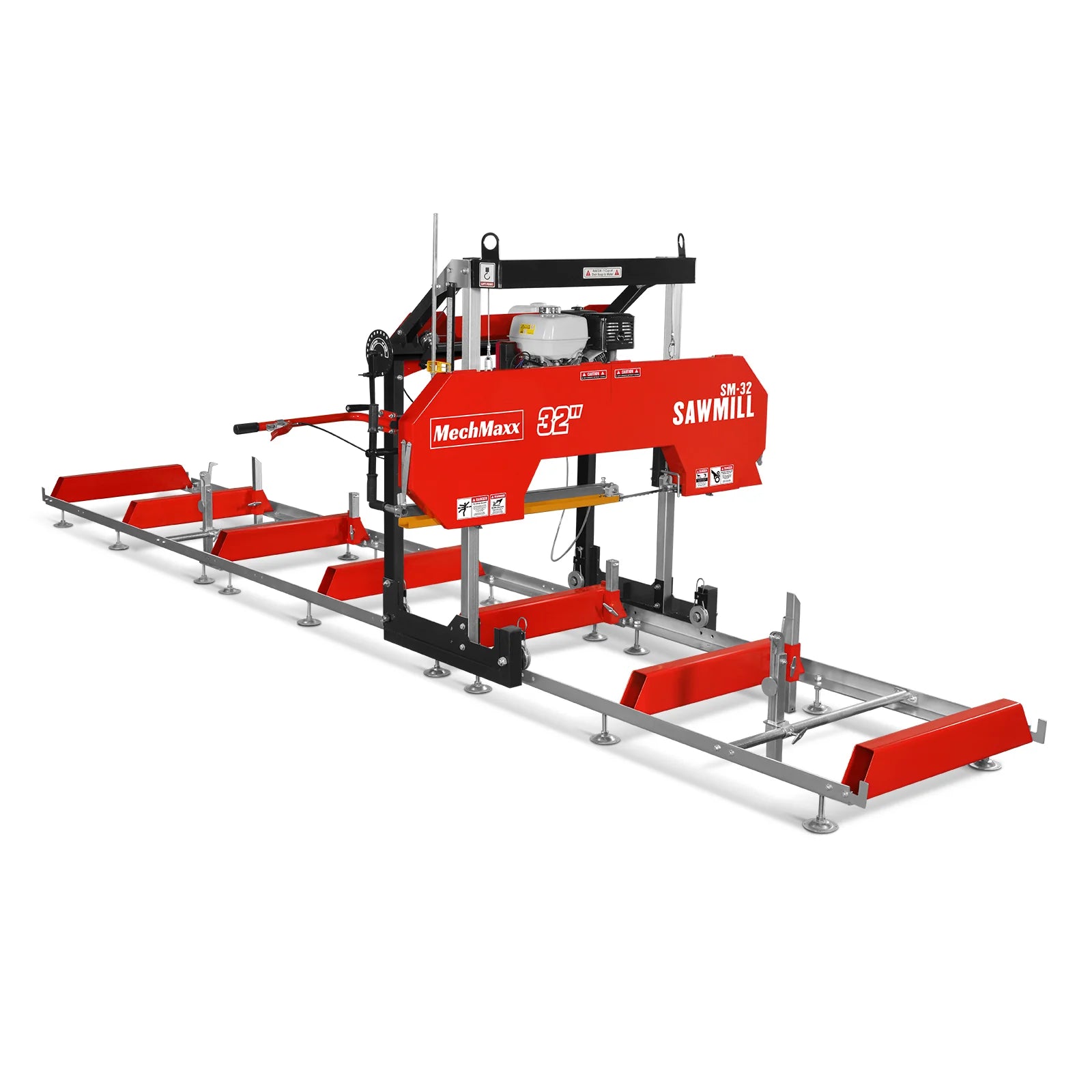

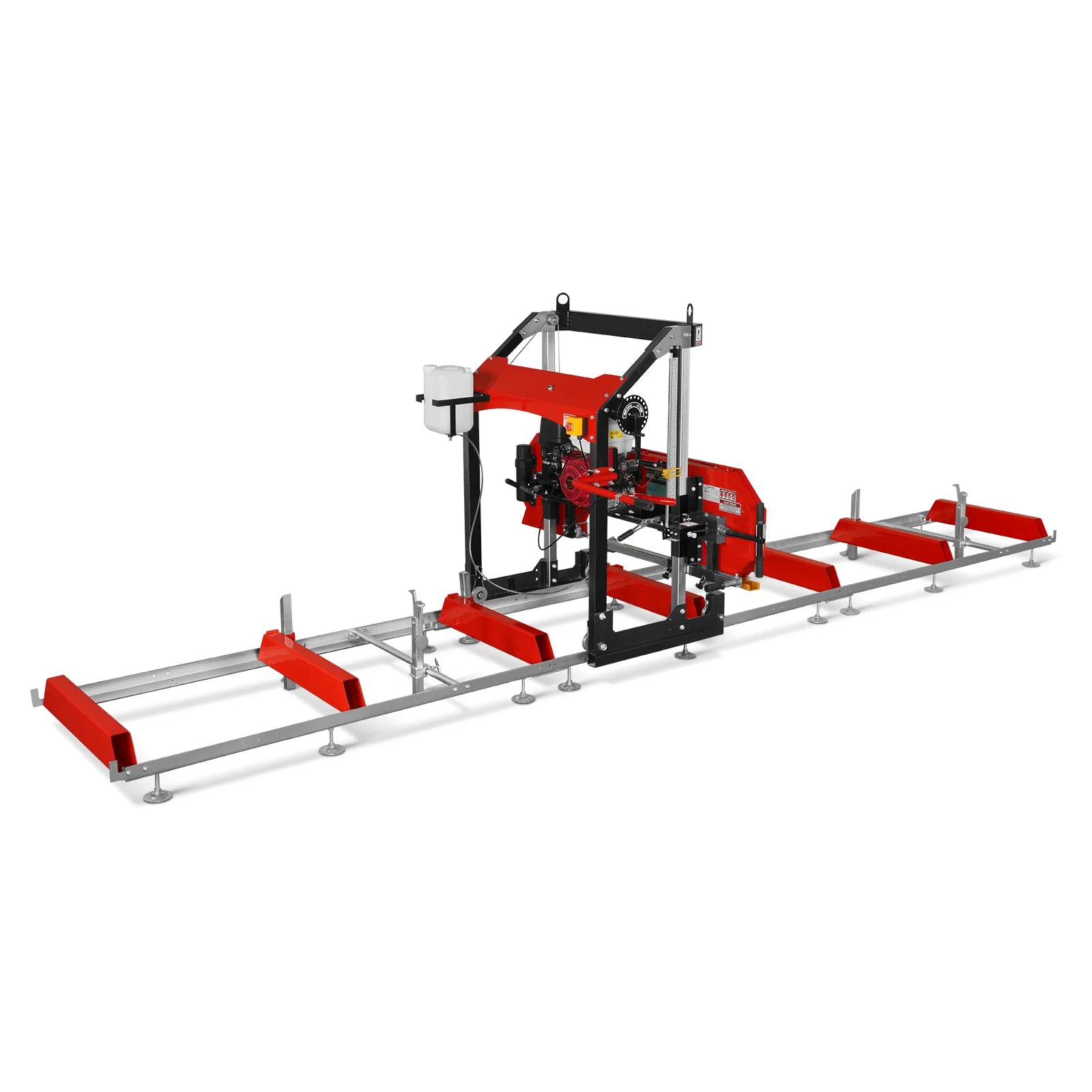

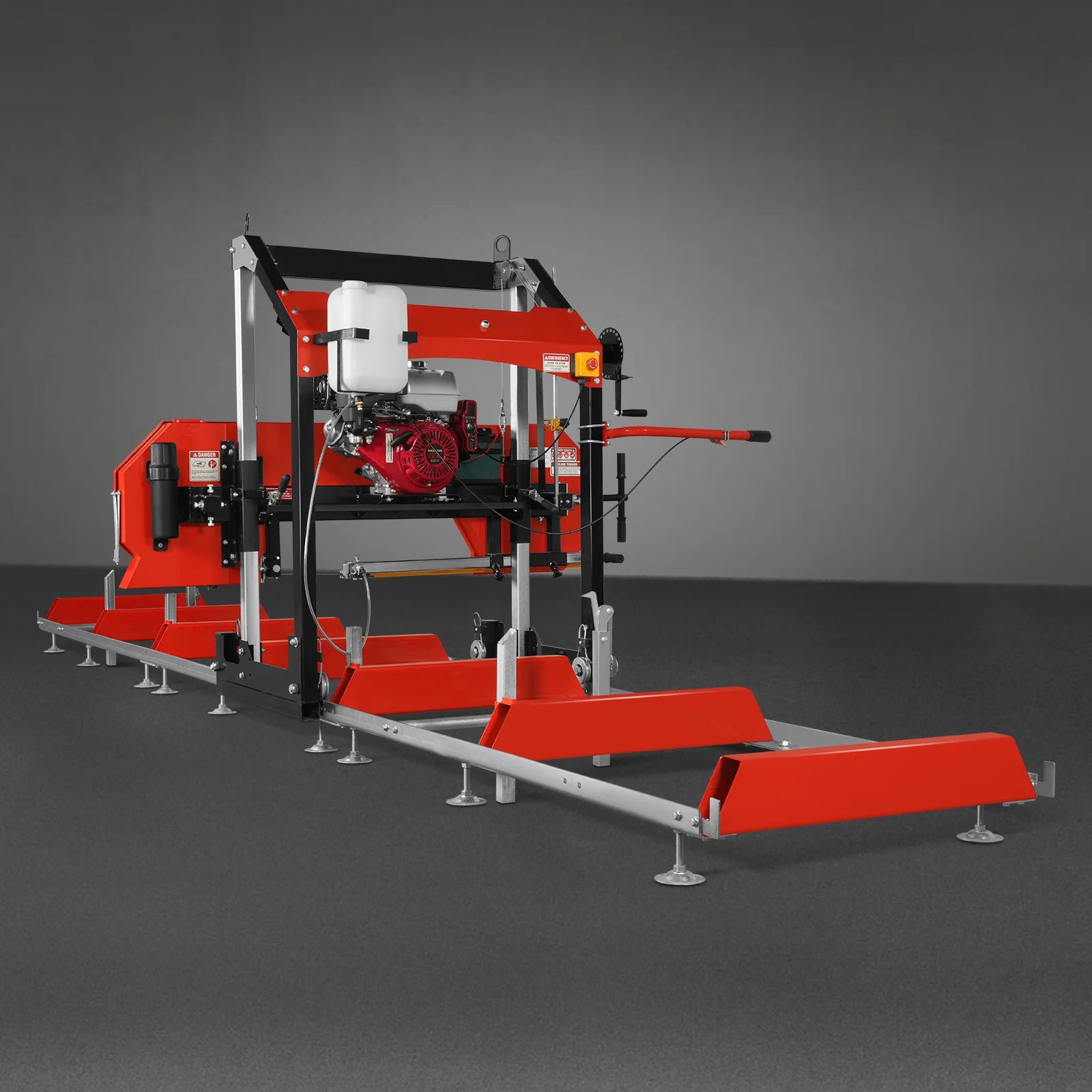

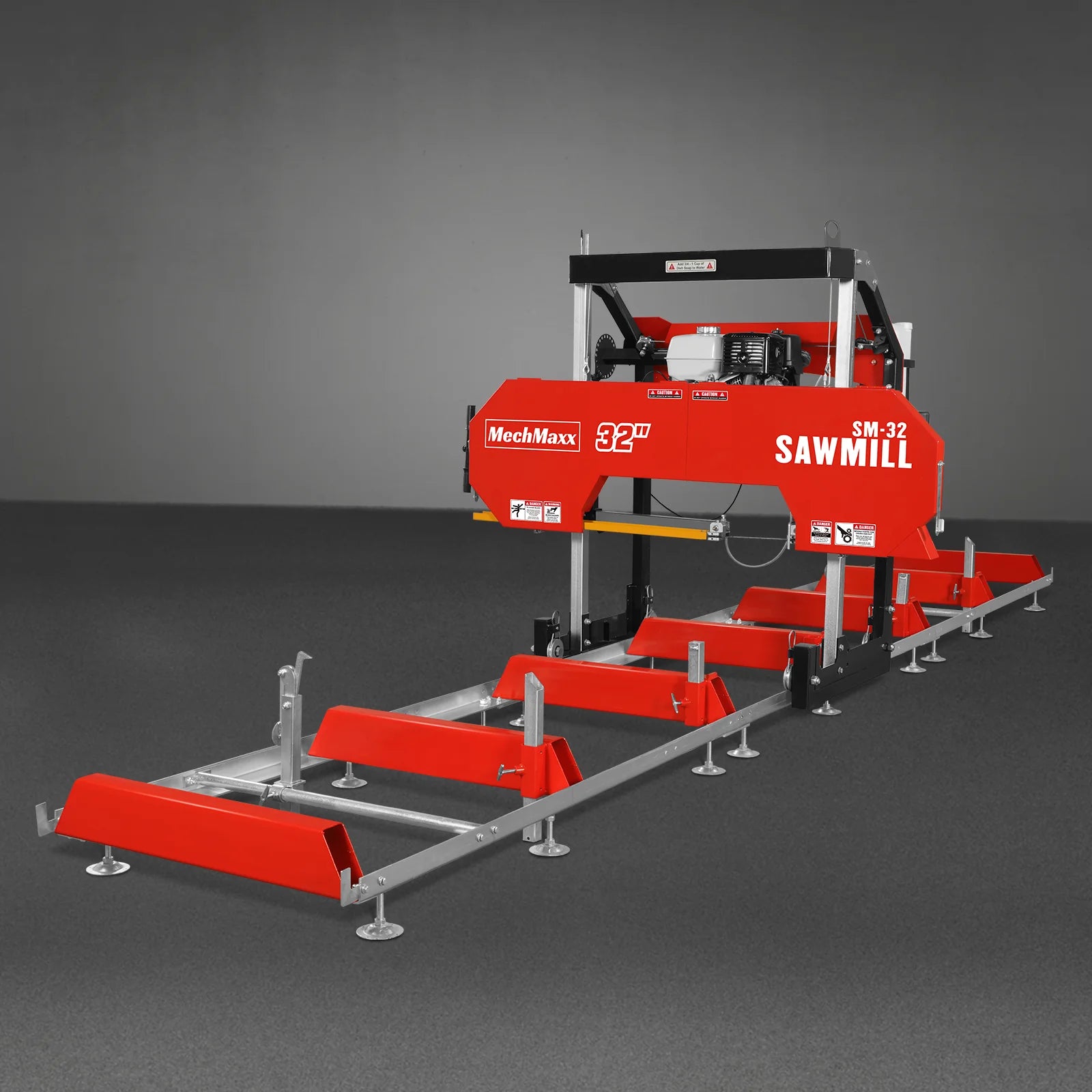

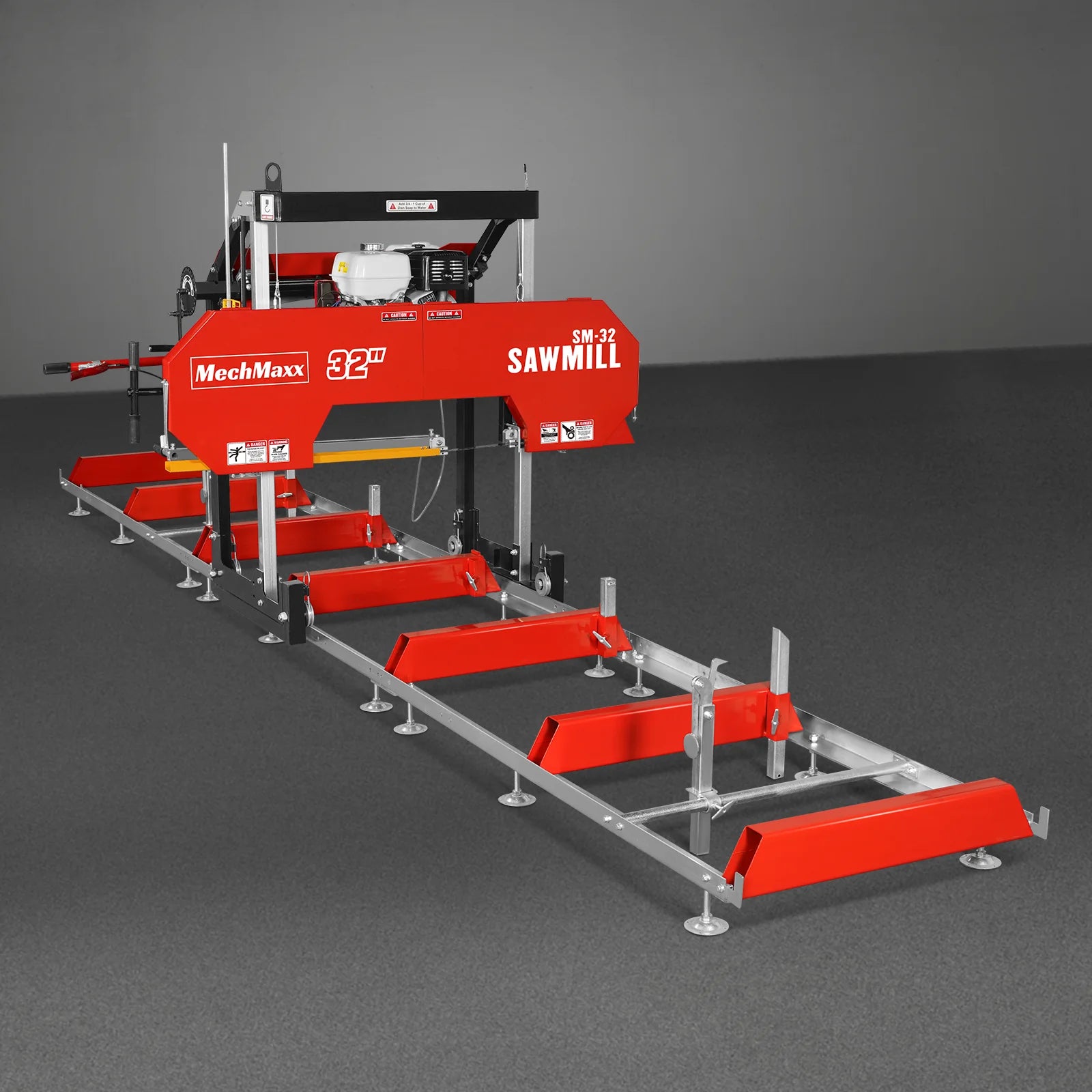

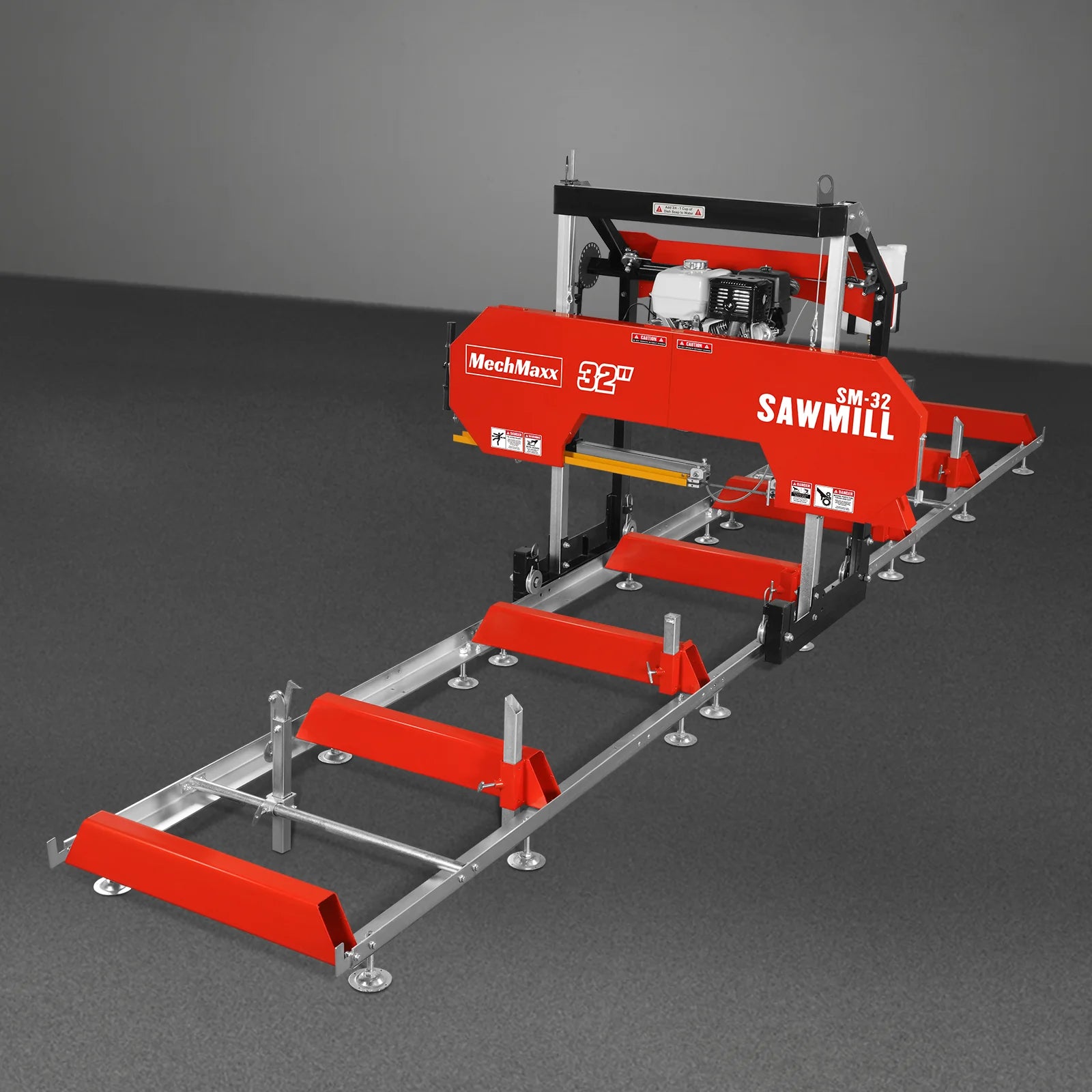

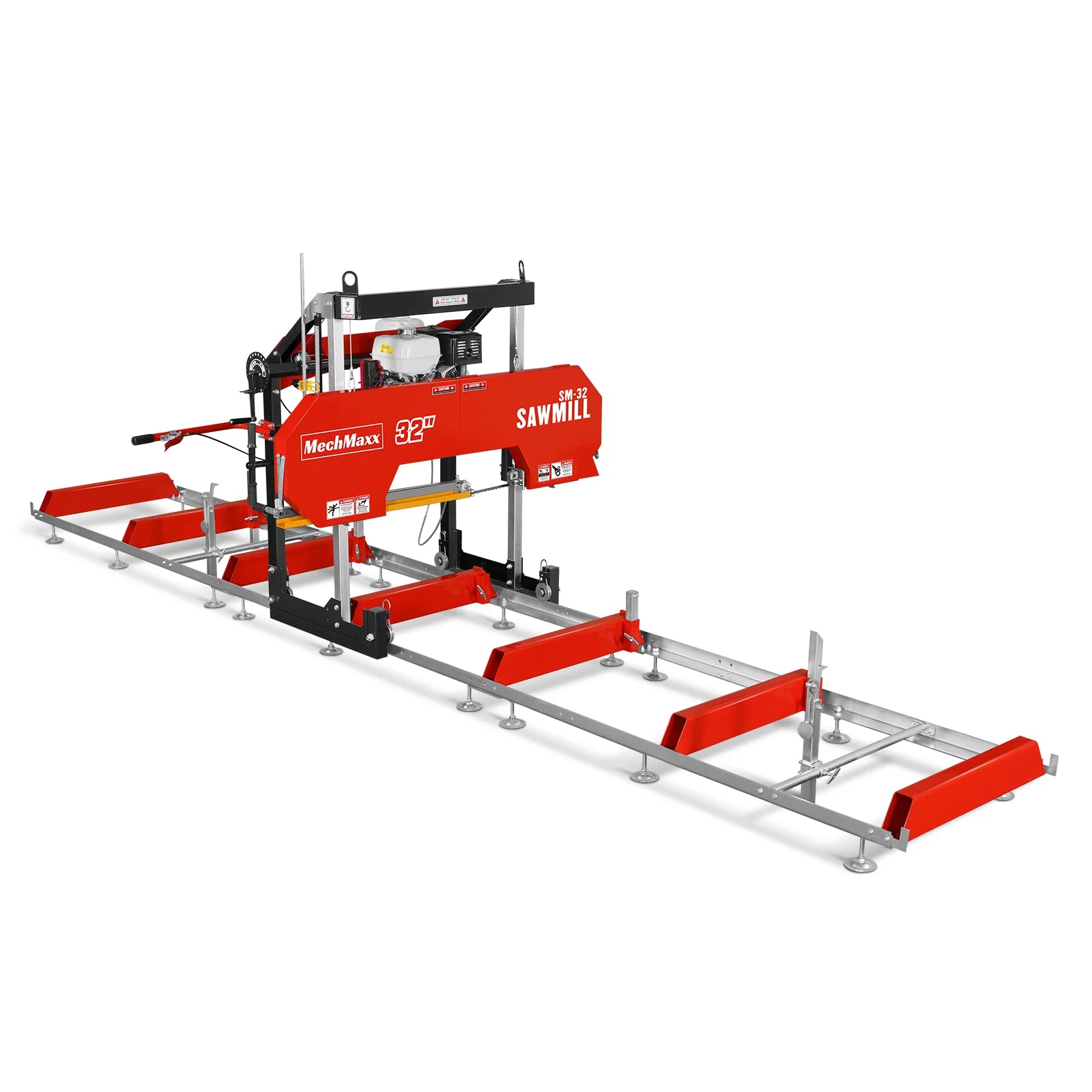

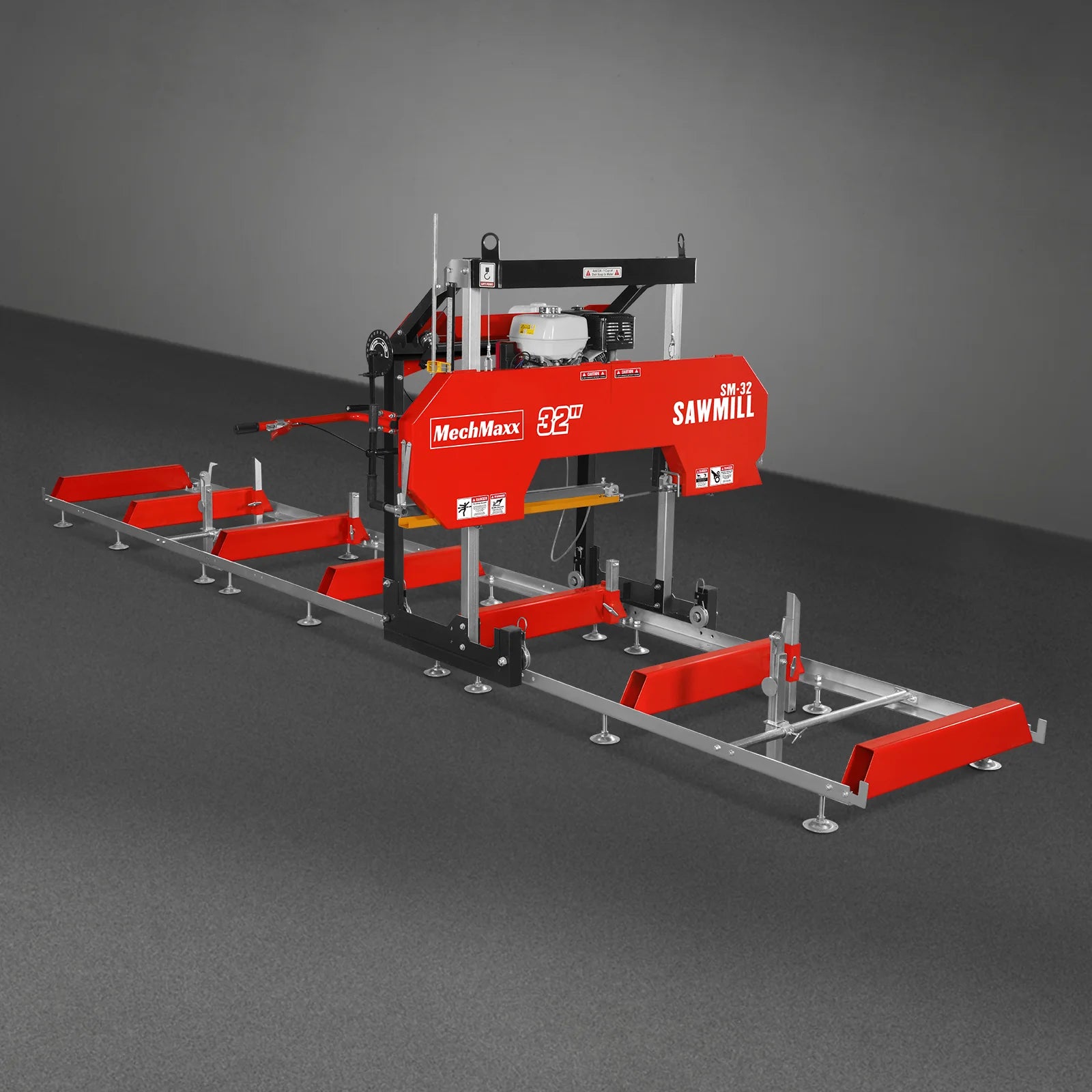

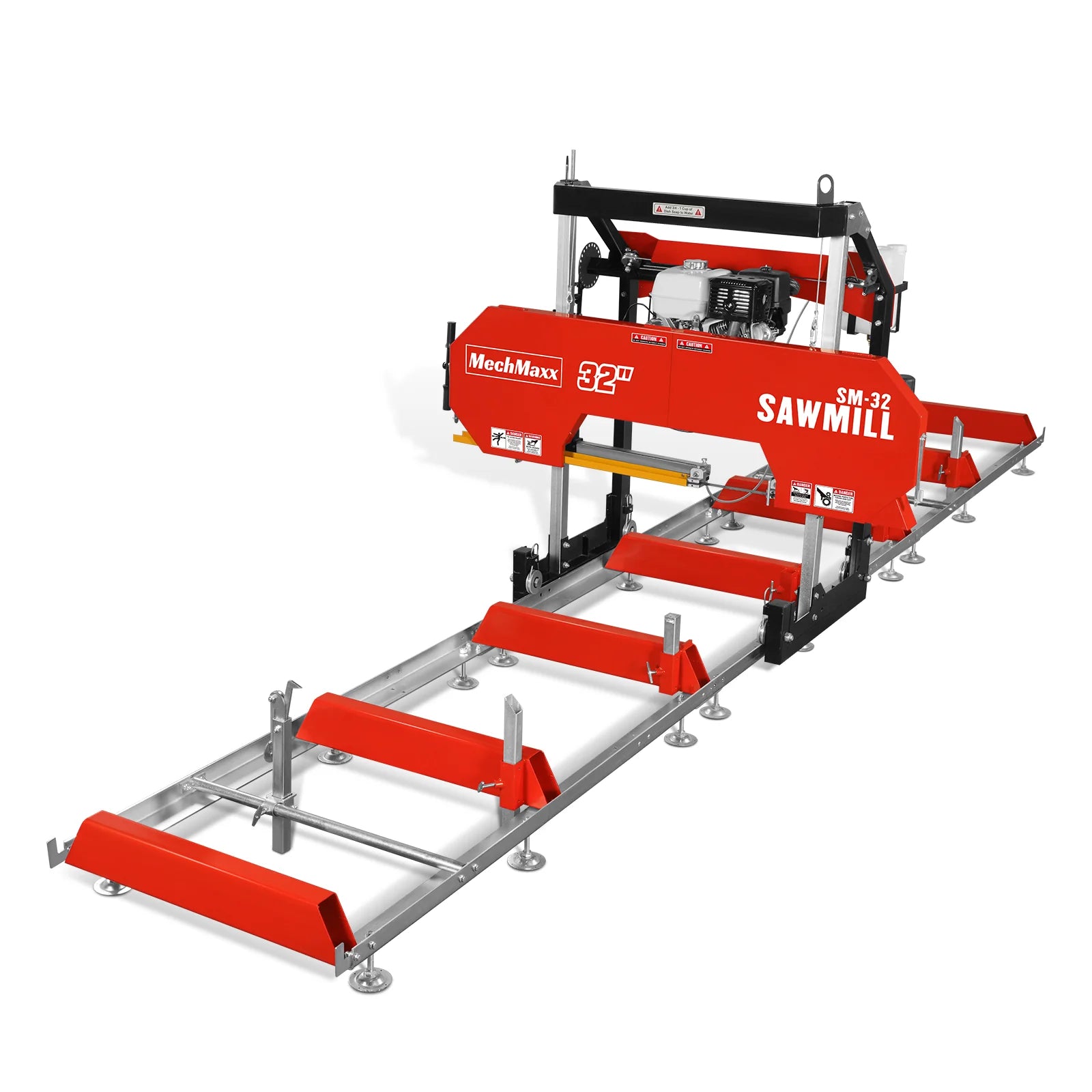

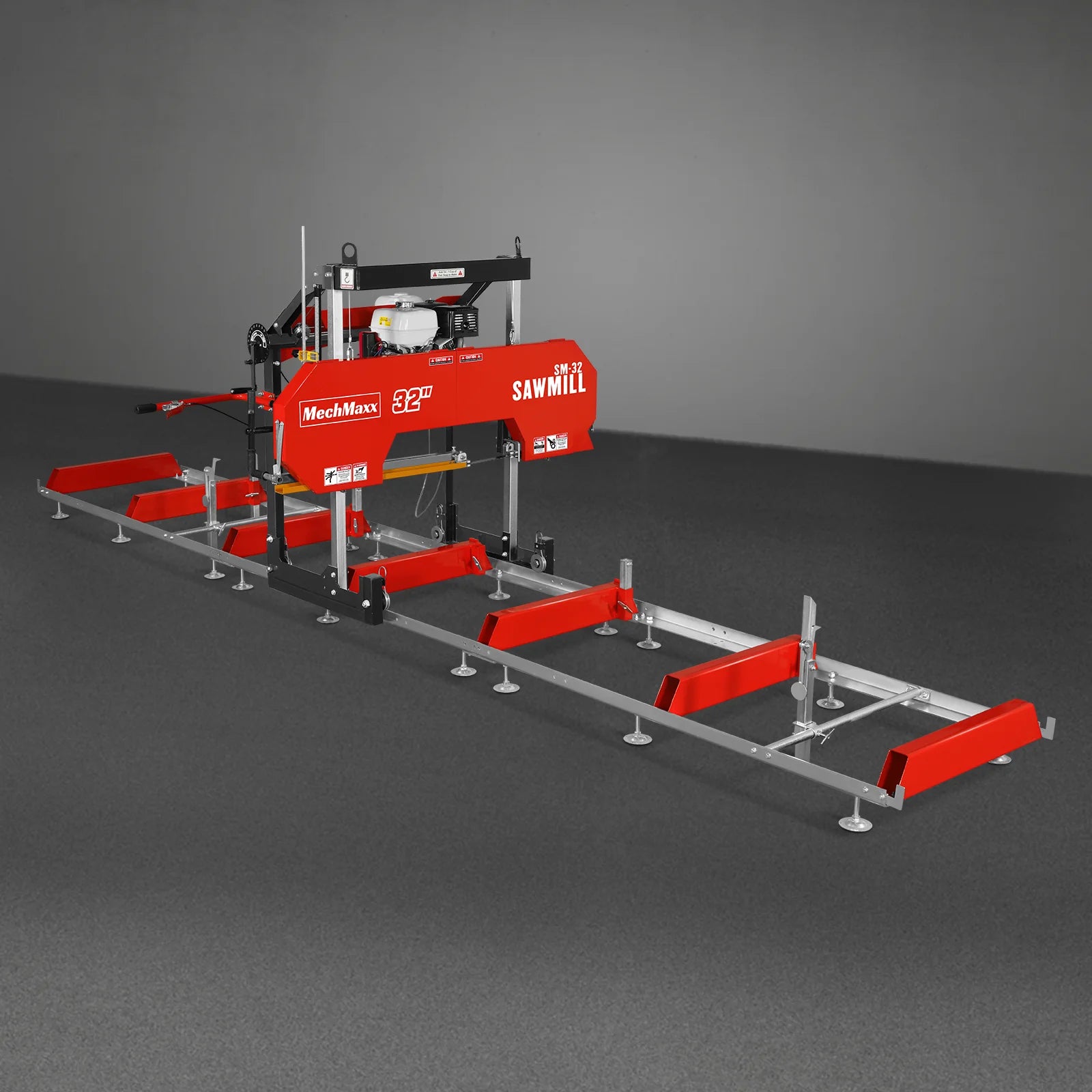

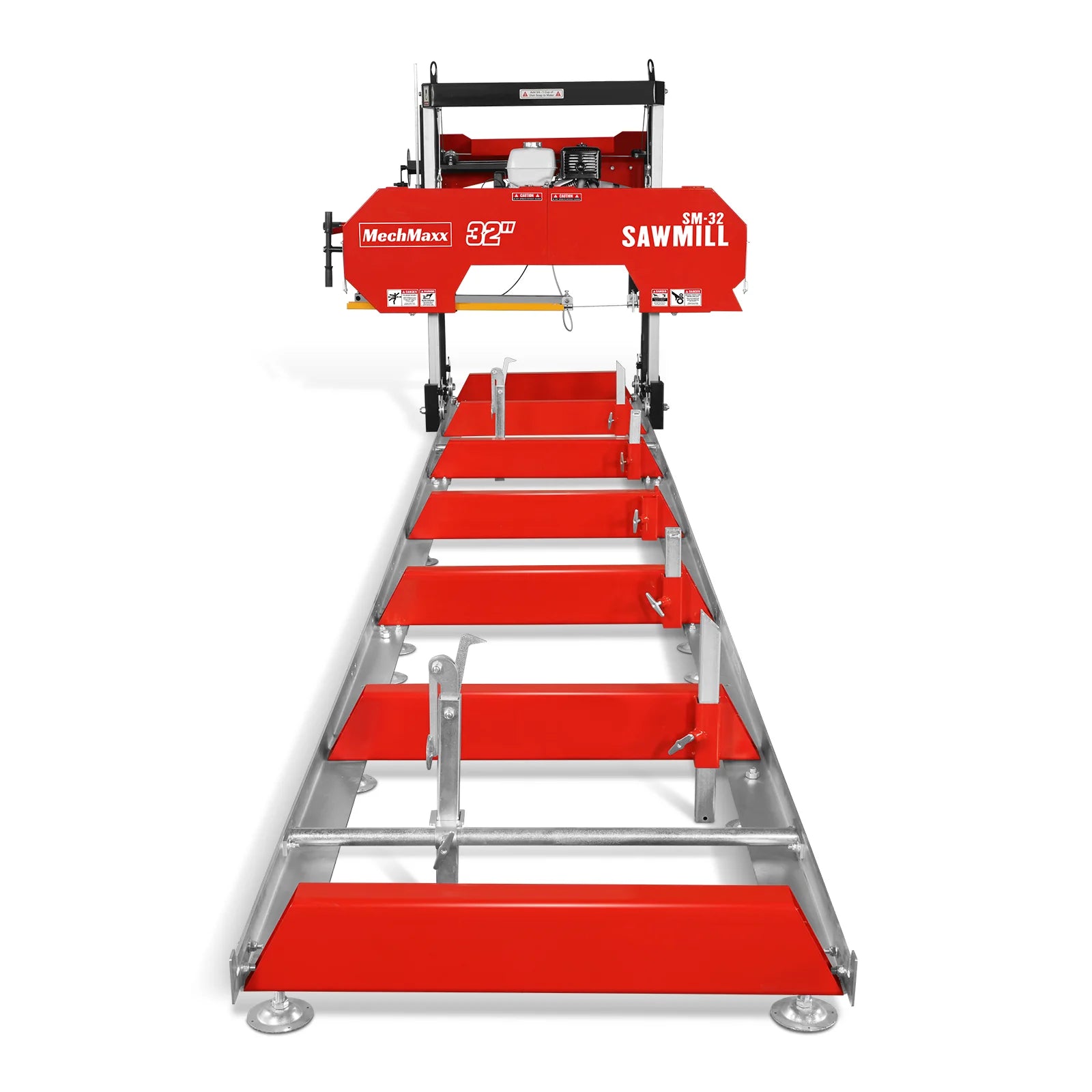

32" Portable Sawmill (5 x Blades Included), HONDA GX390 389cc E-Start Gasoline Engine, 29" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM32

Product Overview :

• Fully capable of cutting large 32" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
• It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.

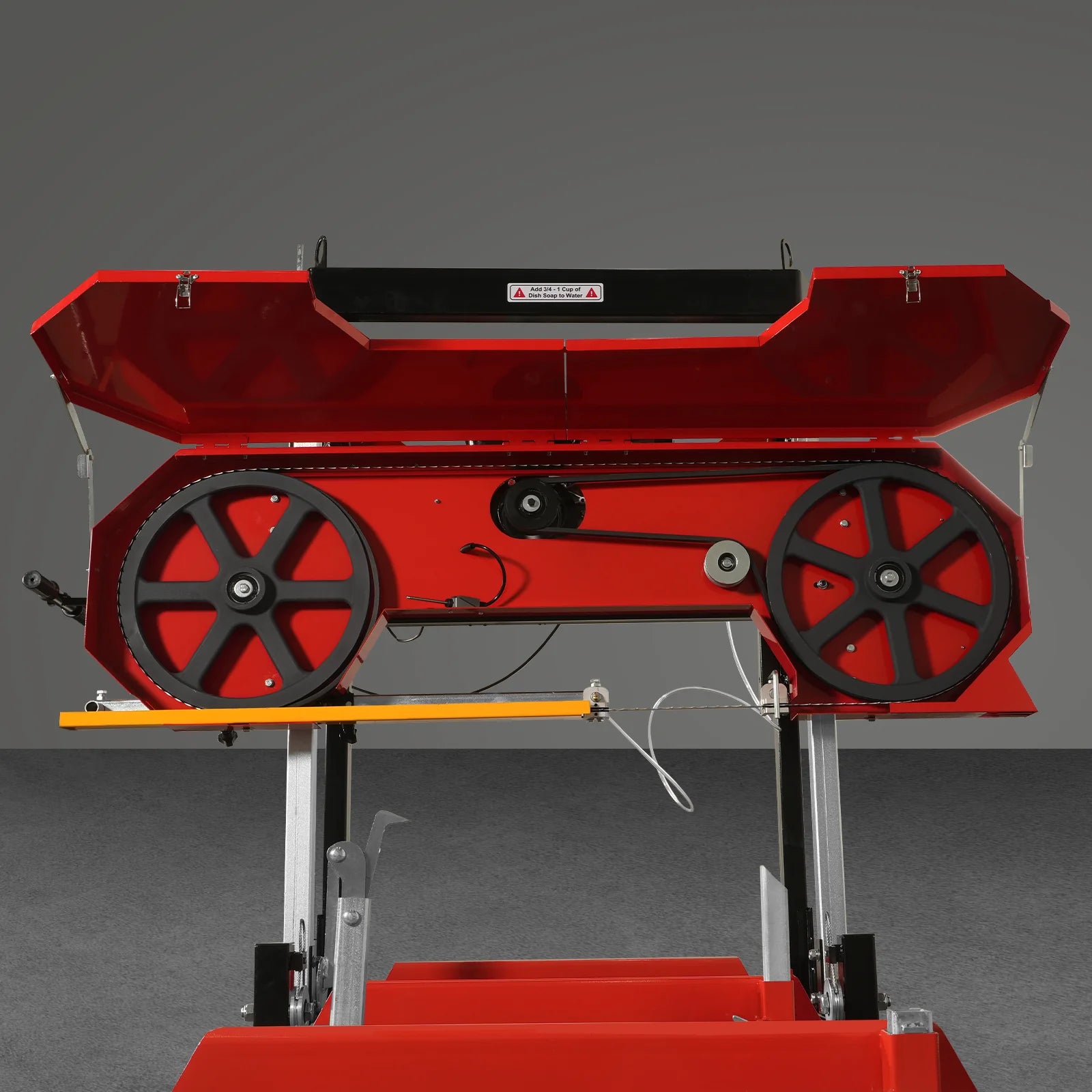

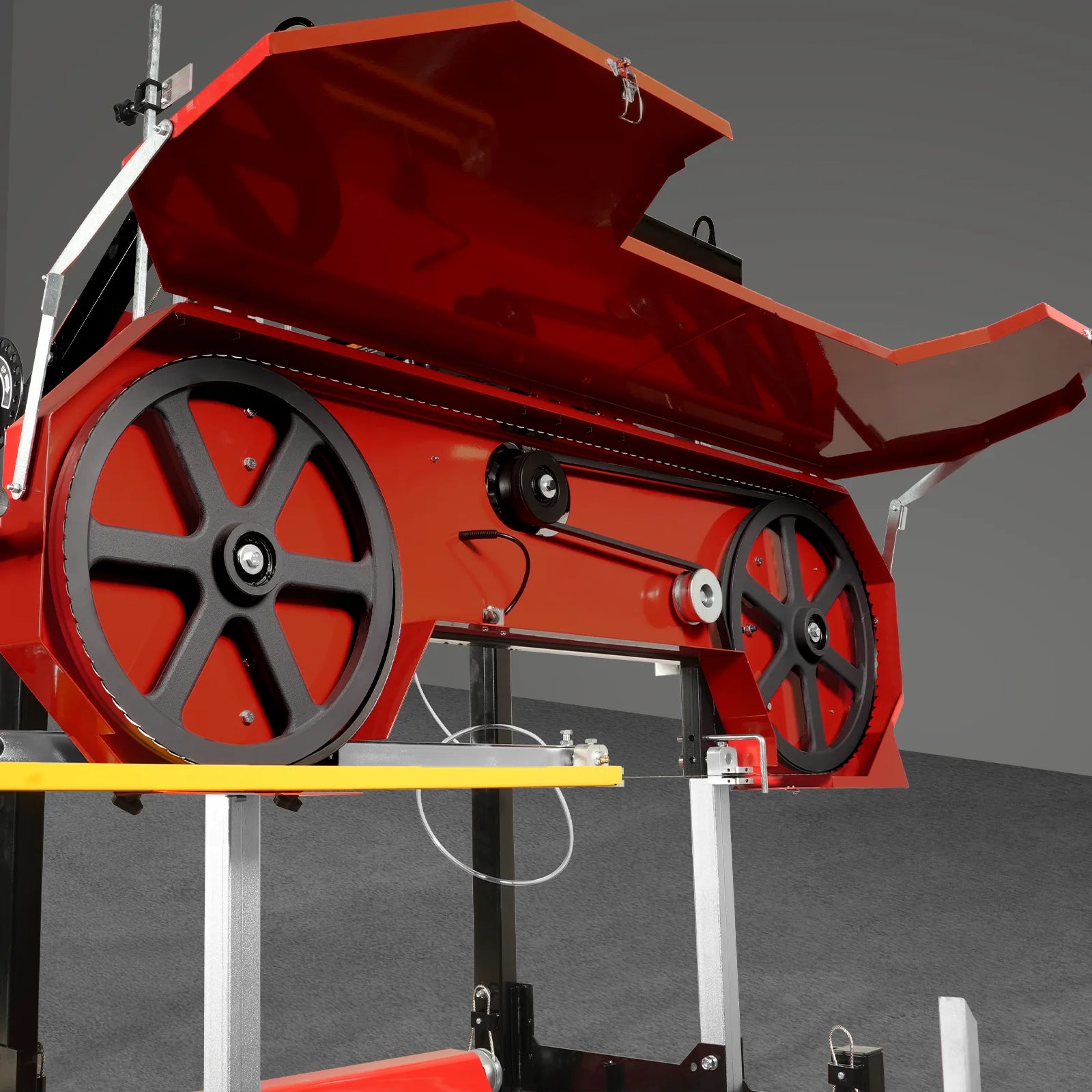

• The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
• Can withstand heavy workloads for long hours, even in remote areas.
• The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
• You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

Product Features :

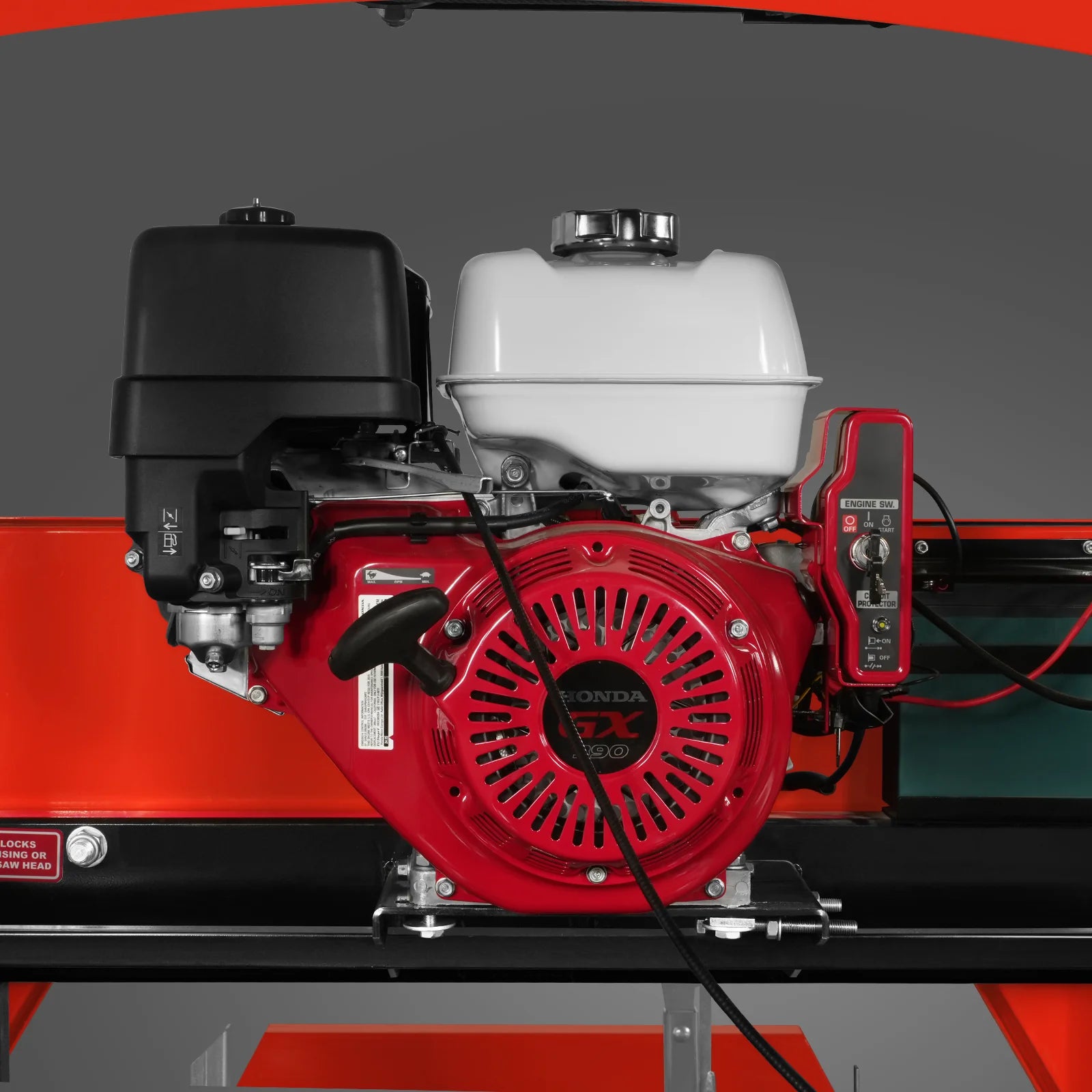

With the GX390, you're looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda's GX Series is power you can trust. Honda's GX series engines are legendary for superior reliability and performance. Low noise levels, low vibration, and low emissions - without sacrificing power output or performance.

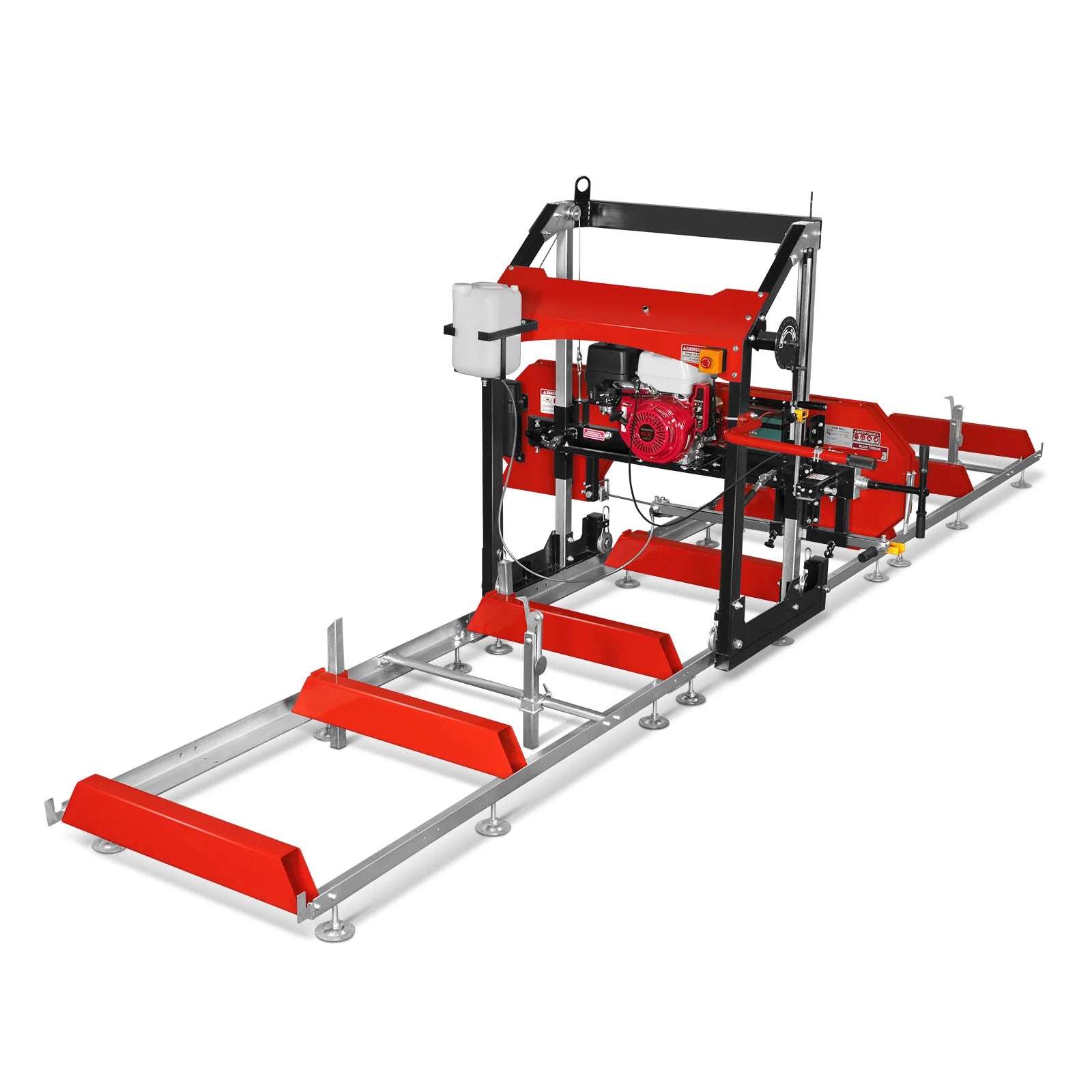

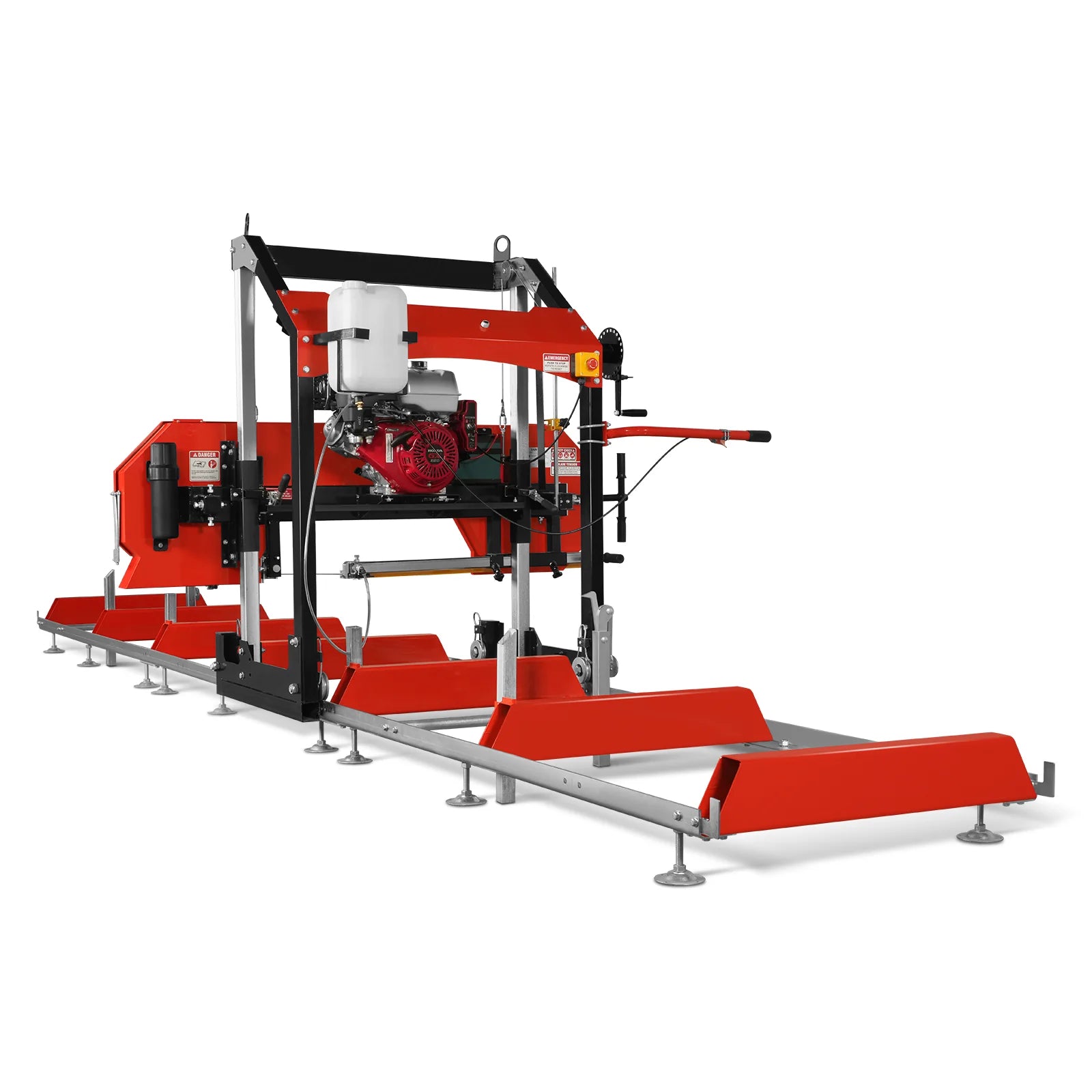

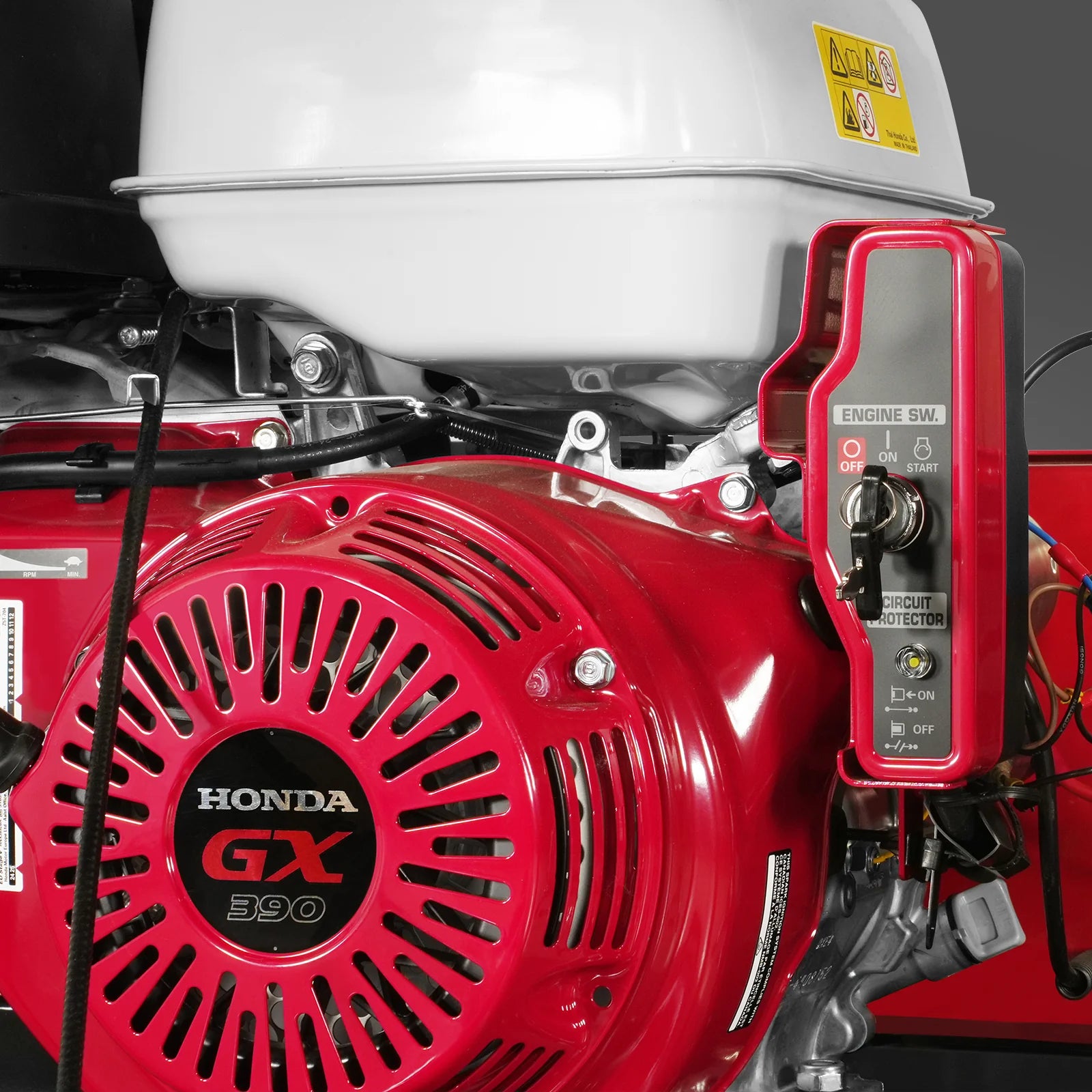

Electric Start

This sawmill is equipped with an electric-start Honda engine, which has excellent performance, reliable quality, and can be used for a long time.

Adjustable Cutting Thickness

The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7''.

Maximum Log Diameter

This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 32".

Emergency Stop Button

There is an emergency stop button on the top of the handle, which can stop the machine at any time in an emergency.

Maximum Cutting Width

According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 29''.

Throttle Handle

You can control the cutting speed by pushing this handle, which reduces the number of required steps and speeds up your woodcutting process; making it more efficient.

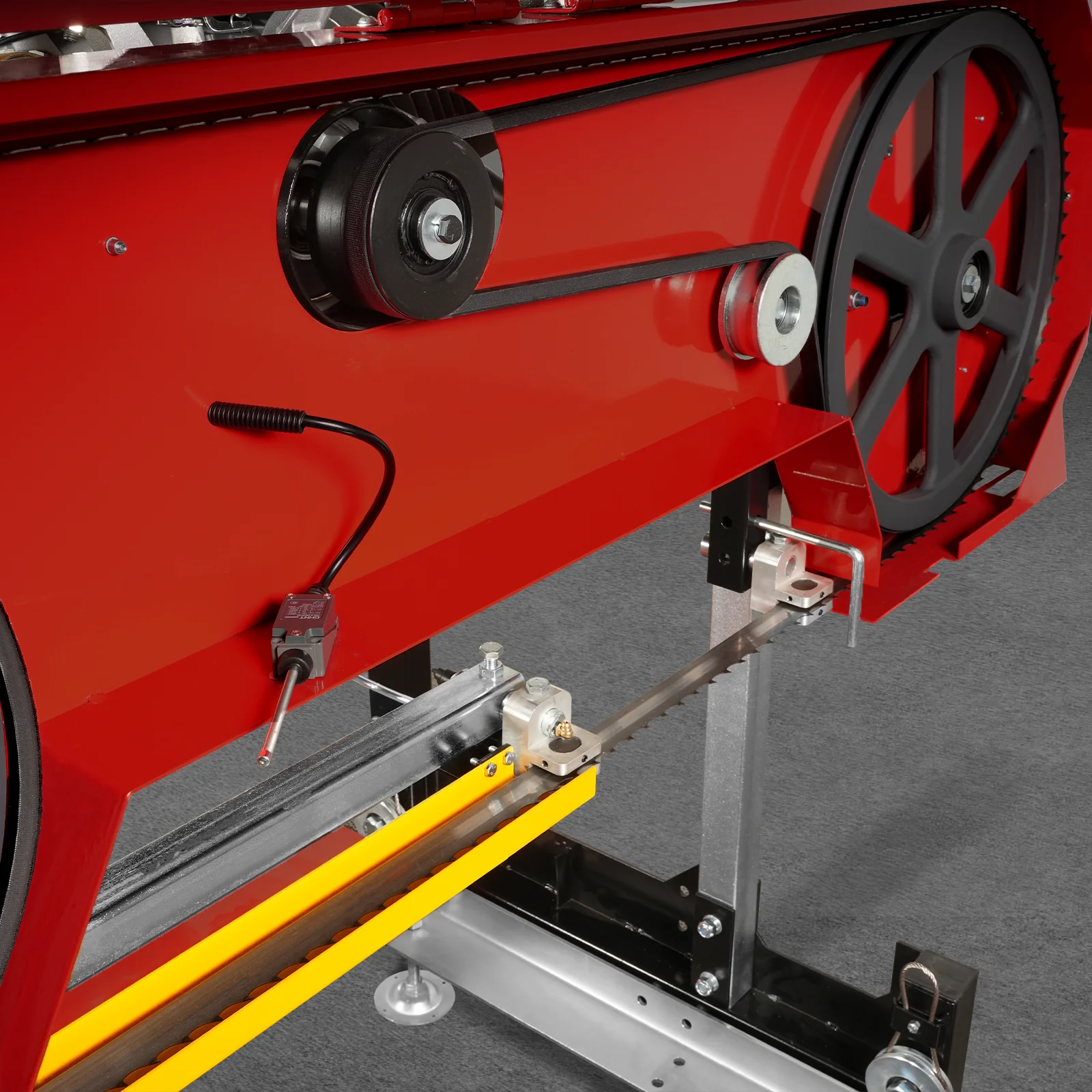

Saw Blade

The saw blade is made out of carbonized steel, with dimensions of 158*1.3*0.04'', and a rotational speed reaching as high as 787'' per second. This will ensure a smooth and stable cutting process while also reducing the amount of wood ships.

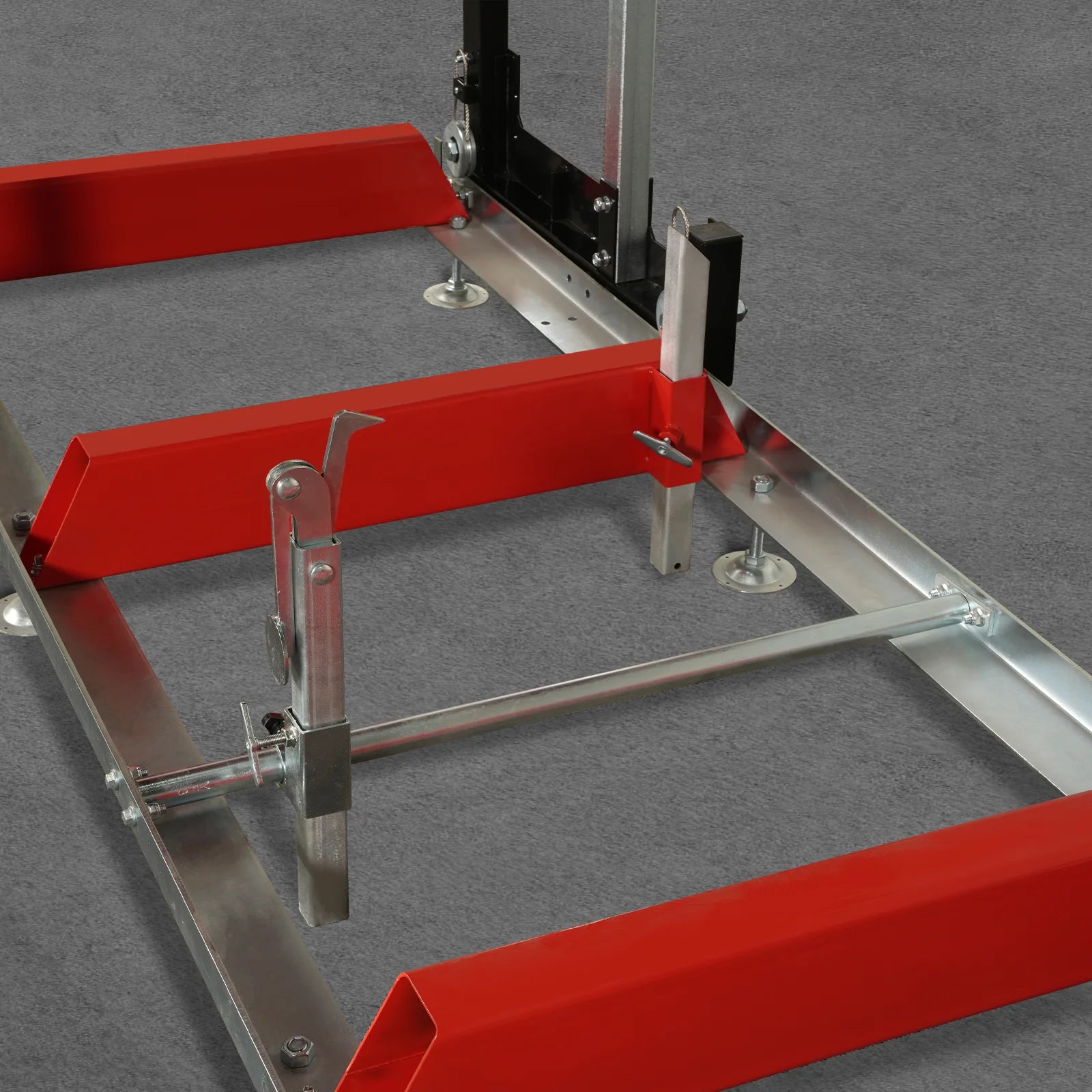

Spiral Log Clamp

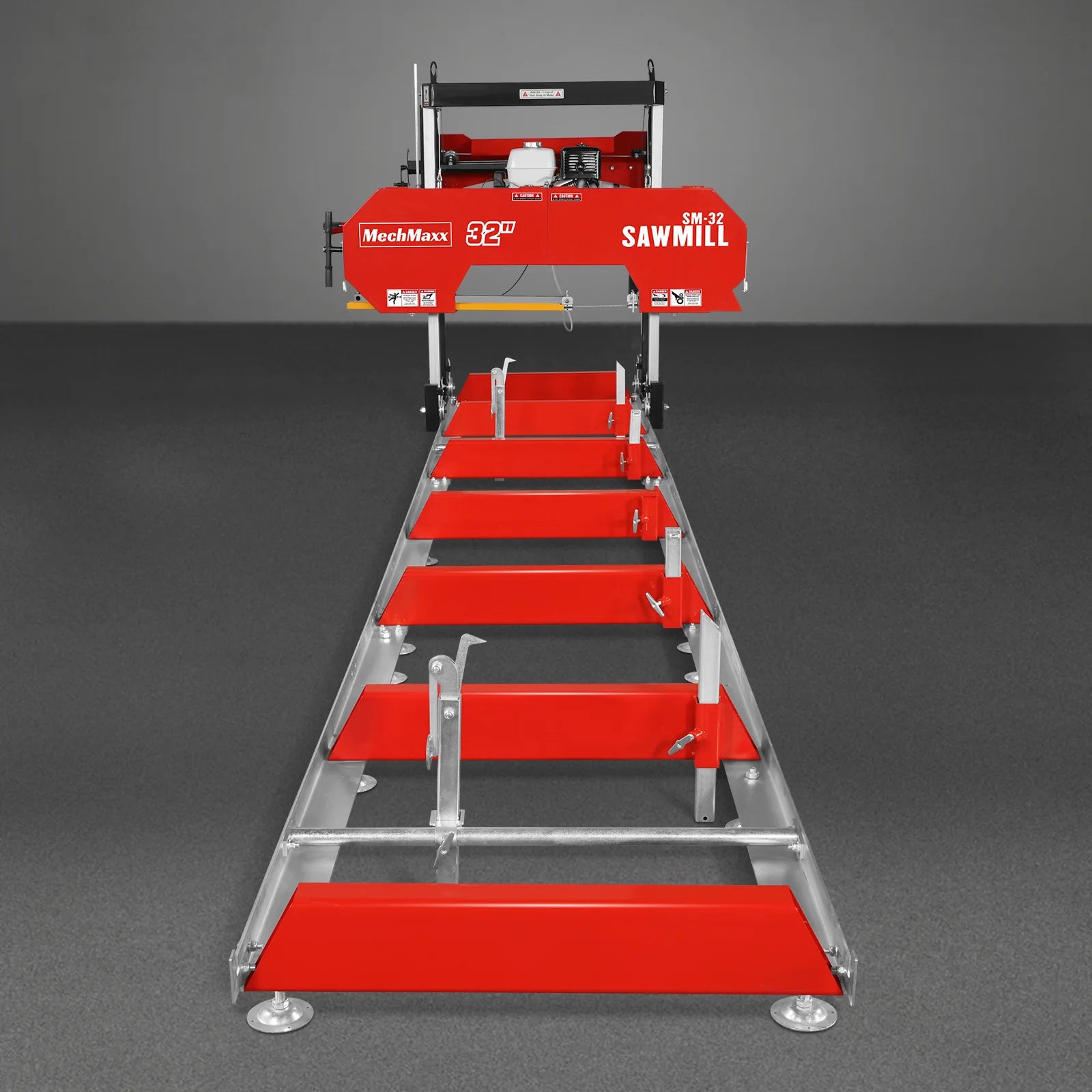

The track features easy-to-use spiral log clamps to hold logs securely while milling.

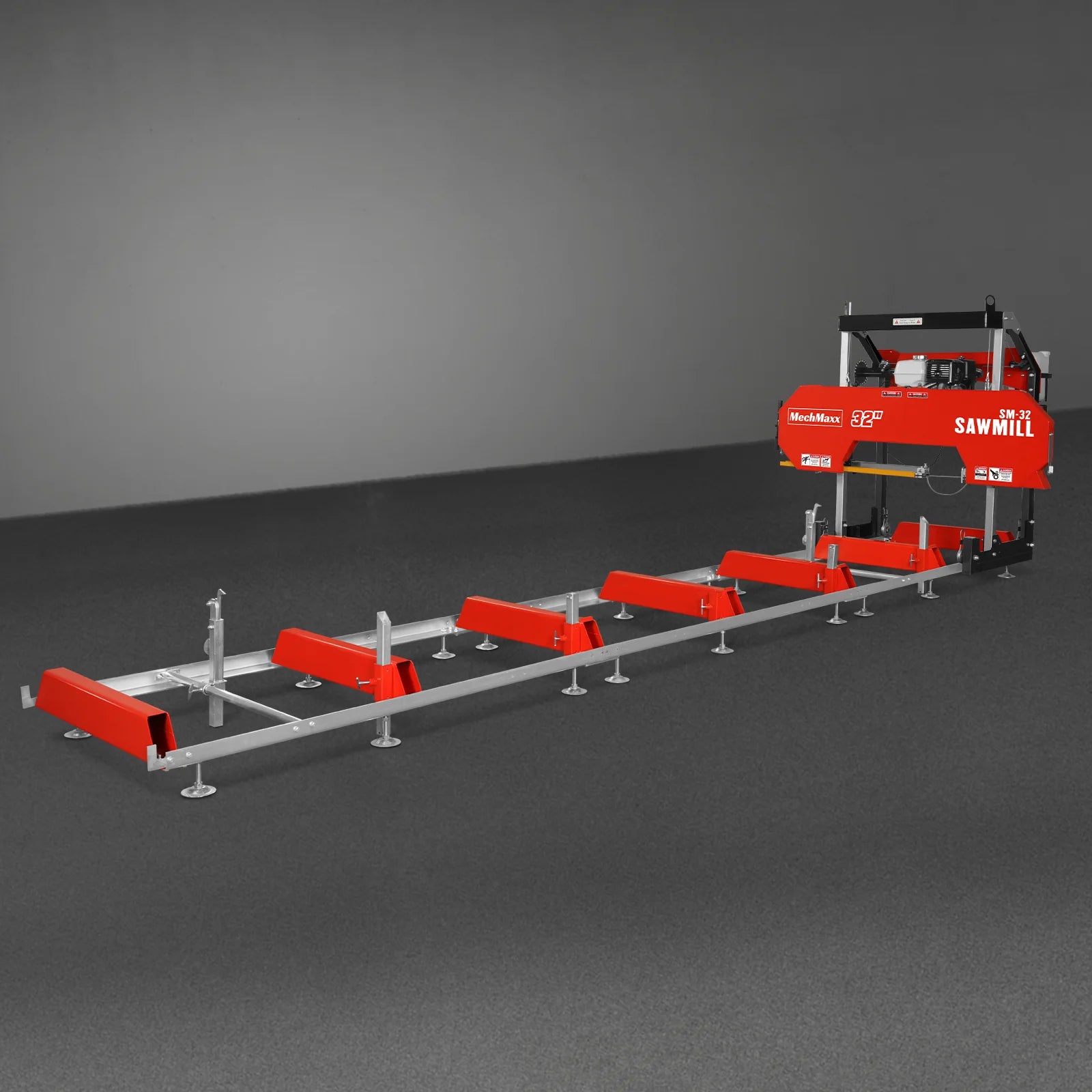

Cutting Length

The logs are equipped with a 201" standard log track, and you can purchase a 77" extension track at MechMaxx according to your needs.

Product Warranty :

Product Warranty

Sawmill (SKU:150167H6) has withstood extreme testing and comes with a 2-year warranty for its' Honda engine, and a 2-year warranty for the machine itself.

Product Extended Warranty Plans

Our extended warranty plans provide an additional 1 to 2 years of product protection on select eligible products.

Specifications :

Engine	HONDA GX390	Lubricant Tank Size	2.6 gal
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Track Width	3 ft 1 in
Engine Displacement	389 cc	Track Length	20 ft
Horsepower	11.7 HP	Track Extension Length	6 ft 5 in
Start	E-Start	Height (Max Head Position)	83 in
Log Diameter	32 in	Levelling Feet	18
Max Live Edge Width	29 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	17 ft	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 x 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	2 Years
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	158 x 1.3 in	Packing Size	90 x 25 x 34 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	953/1047 lbs
Blade Lubrication	Water Lube - Manual Valve	Package Contents	Sawmill x 1, Blade x 5, Cant Hook x 1

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
